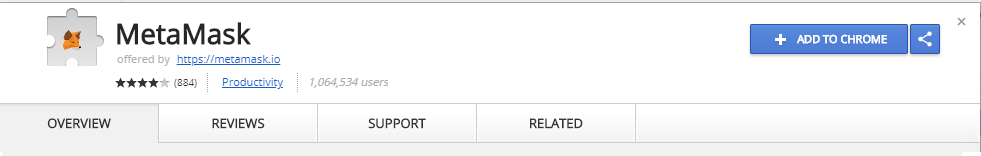

Once MetaMask is installed you should see a new icon (the head of a fox) in your browser’s toolbar. Click on it to get started. You will be asked to accept the terms and conditions and then to create your new Ethereum wallet by entering a password (see The password page of the MetaMask Chrome extension).

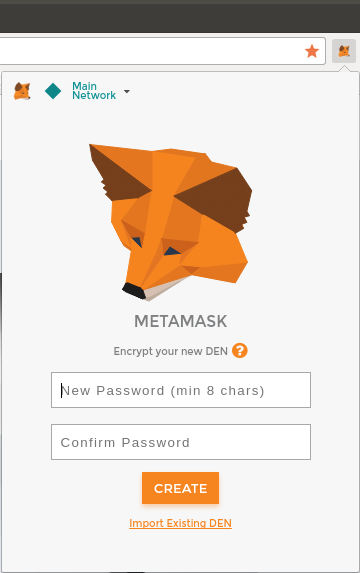

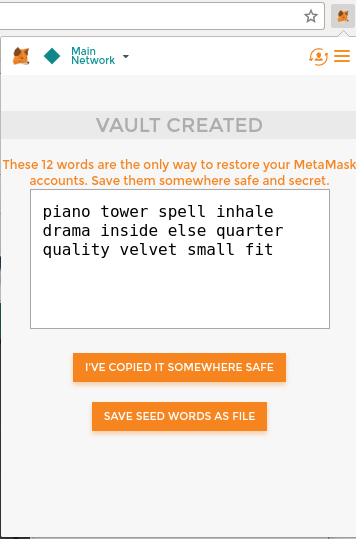

Once you’ve set a password, MetaMask will generate a wallet for you and show you a mnemonic backup consisting of 12 English words (see The mnemonic backup of your wallet, created by MetaMask). These words can be used in any compatible wallet to recover access to your funds should something happen to MetaMask or your computer. You do not need the password for this recovery; the 12 words are sufficient.

Once you have confirmed that you have stored the mnemonic securely, you’ll be able to see the details of your Ethereum account, as shown in Your Ethereum account in MetaMask.

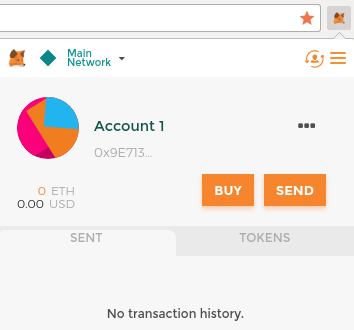

Your account page shows the name of your account ("Account 1" by default), an Ethereum address (0x9E713... in the example), and a colorful icon to help you visually distinguish this account from other accounts. At the top of the account page, you can see which Ethereum network you are currently working on ("Main Network" in the example).

Congratulations! You have set up your first Ethereum wallet.

As you can see on the MetaMask account page, you can choose between multiple Ethereum networks. By default, MetaMask will try to connect to the main network. The other choices are public testnets, any Ethereum node of your choice, or nodes running private blockchains on your own computer (localhost):

Your first task is to get your wallet funded. You won’t be doing that on the main network because real ether costs money and handling it requires a bit more experience. For now, you’ll load your wallet with some testnet ether.

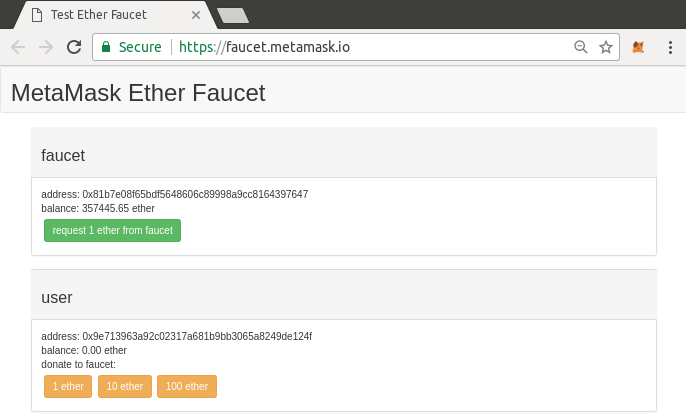

Switch MetaMask to the Ropsten Test Network. Click Deposit, then click Ropsten Test Faucet. MetaMask will open a new web page, as shown in MetaMask Ropsten Test Faucet.

You may notice that the web page already contains your MetaMask wallet’s Ethereum address. MetaMask integrates Ethereum-enabled web pages with your MetaMask wallet and can "see" Ethereum addresses on the web page, allowing you, for example, to send a payment to an online shop displaying an Ethereum address. MetaMask can also populate the web page with your own wallet’s address as a recipient address if the web page requests it. In this page, the faucet application is asking MetaMask for a wallet address to send test ether to.

Click the green "request 1 ether from faucet" button. You will see a transaction ID appear in the lower part of the page. The faucet app has created a transaction—a payment to you. The transaction ID looks like this:

In a few seconds, the new transaction will be mined by the Ropsten miners and your MetaMask wallet will show a balance of 1 ETH. Click on the transaction ID and your browser will take you to a block explorer, which is a website that allows you to visualize and explore blocks, addresses, and transactions. MetaMask uses the Etherscan block explorer, one of the more popular Ethereum block explorers. The transaction containing the payment from the Ropsten Test Faucet is shown in Etherscan Ropsten block explorer.

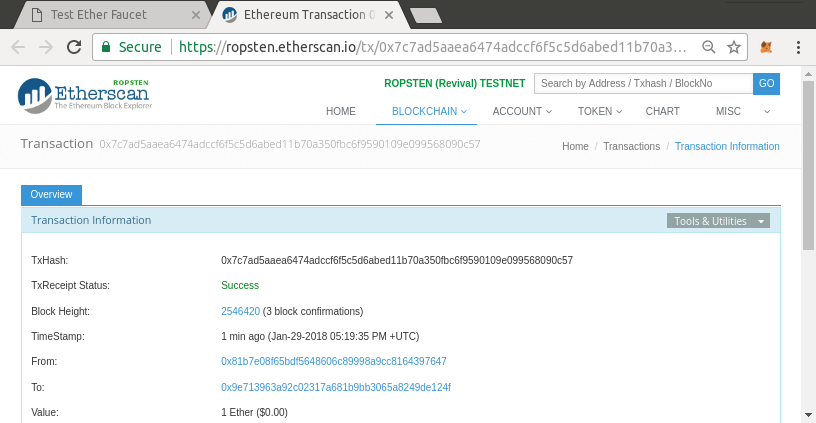

The transaction has been recorded on the Ropsten blockchain and can be viewed at any time by anyone, simply by searching for the transaction ID, or visiting the link.

Try visiting that link, or entering the transaction hash into the ropsten.etherscan.io website, to see it for yourself.

Once you’ve received your first test ether from the Ropsten Test Faucet, you can experiment with sending ether by trying to send some back to the faucet. As you can see on the Ropsten Test Faucet page, there is an option to "donate" 1 ETH to the faucet. This option is available so that once you’re done testing, you can return the remainder of your test ether, so that someone else can use it next. Even though test ether has no value, some people hoard it, making it difficult for everyone else to use the test networks. Hoarding test ether is frowned upon!

Fortunately, we are not test ether hoarders. Click the orange "1 ether" button to tell MetaMask to create a transaction paying the faucet 1 ether. MetaMask will prepare a transaction and pop up a window with the confirmation, as shown in Sending 1 ether to the faucet.

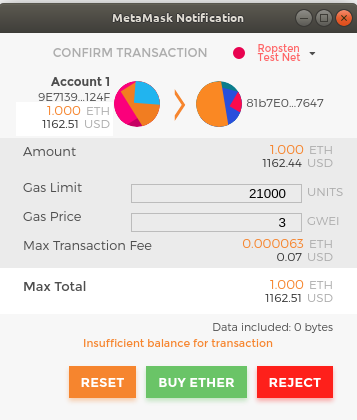

Oops! You probably noticed you can’t complete the transaction—MetaMask says you have an insufficient balance. At first glance this may seem confusing: you have 1 ETH, you want to send 1 ETH, so why is MetaMask saying you have insufficient funds?

The answer is because of the cost of gas. Every Ethereum transaction requires payment of a fee, which is collected by the miners to validate the transaction. The fees in Ethereum are charged in a virtual currency called gas. You pay for the gas with ether, as part of the transaction.

When you sent the transaction, MetaMask calculated the average gas price of recent successful transactions at 3 gwei, which stands for gigawei. Wei is the smallest subdivision of the ether currency, as we discussed in Ether Currency Units. The gas limit is set at the cost of sending a basic transaction, which is 21,000 gas units. Therefore, the maximum amount of ETH you will spend is 3 * 21,000 gwei = 63,000 gwei = 0.000063 ETH. (Be advised that average gas prices can fluctuate, as they are predominantly determined by miners. We will see in a later chapter how you can increase/decrease your gas limit to ensure your transaction takes precedence if need be.)

All this to say: making a 1 ETH transaction costs 1.000063 ETH. MetaMask confusingly rounds that down to 1 ETH when showing the total, but the actual amount you need is 1.000063 ETH and you only have 1 ETH. Click Reject to cancel this transaction.

Let’s get some more test ether! Click the green "request 1 ether from the faucet" button again and wait a few seconds. Don’t worry, the faucet should have plenty of ether and will give you more if you ask.

Once you have a balance of 2 ETH, you can try again. This time, when you click the orange "1 ether" donation button, you have sufficient balance to complete the transaction. Click Submit when MetaMask pops up the payment window. After all of this, you should see a balance of 0.999937 ETH because you sent 1 ETH to the faucet with 0.000063 ETH in gas.

By now you have become an expert in using MetaMask to send and receive test ether. Your wallet has received at least two payments and sent at least one. You can view all these transactions using the ropsten.etherscan.io block explorer. You can either copy your wallet address and paste it into the block explorer’s search box, or have MetaMask open the page for you. Next to your account icon in MetaMask, you will see a button showing three dots. Click on it to show a menu of account-related options (see MetaMask account context menu).

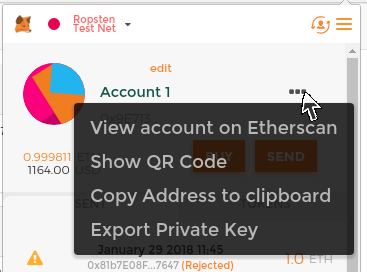

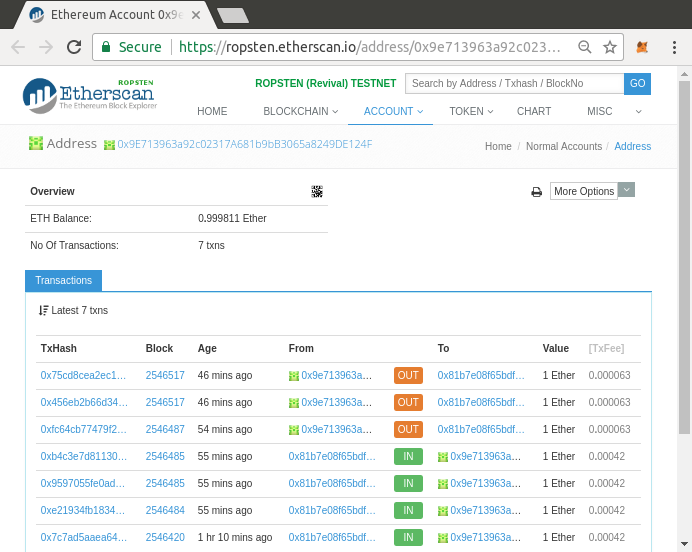

Select "View account on Etherscan" to open a web page in the block explorer showing your account’s transaction history, as shown in Address transaction history on Etherscan.

Here you can see the entire transaction history of your Ethereum address. It shows all the transactions recorded on the Ropsten blockchain where your address is the sender or recipient. Click on a few of these transactions to see more details.

You can explore the transaction history of any address. Take a look at the transaction history of the Ropsten Test Faucet address (hint: it is the "sender" address listed in the oldest payment to your address). You can see all the test ether sent from the faucet to you and to other addresses. Every transaction you see can lead you to more addresses and more transactions. Before long you will be lost in the maze of interconnected data. Public blockchains contain an enormous wealth of information, all of which can be explored programmatically, as we will see in future examples.

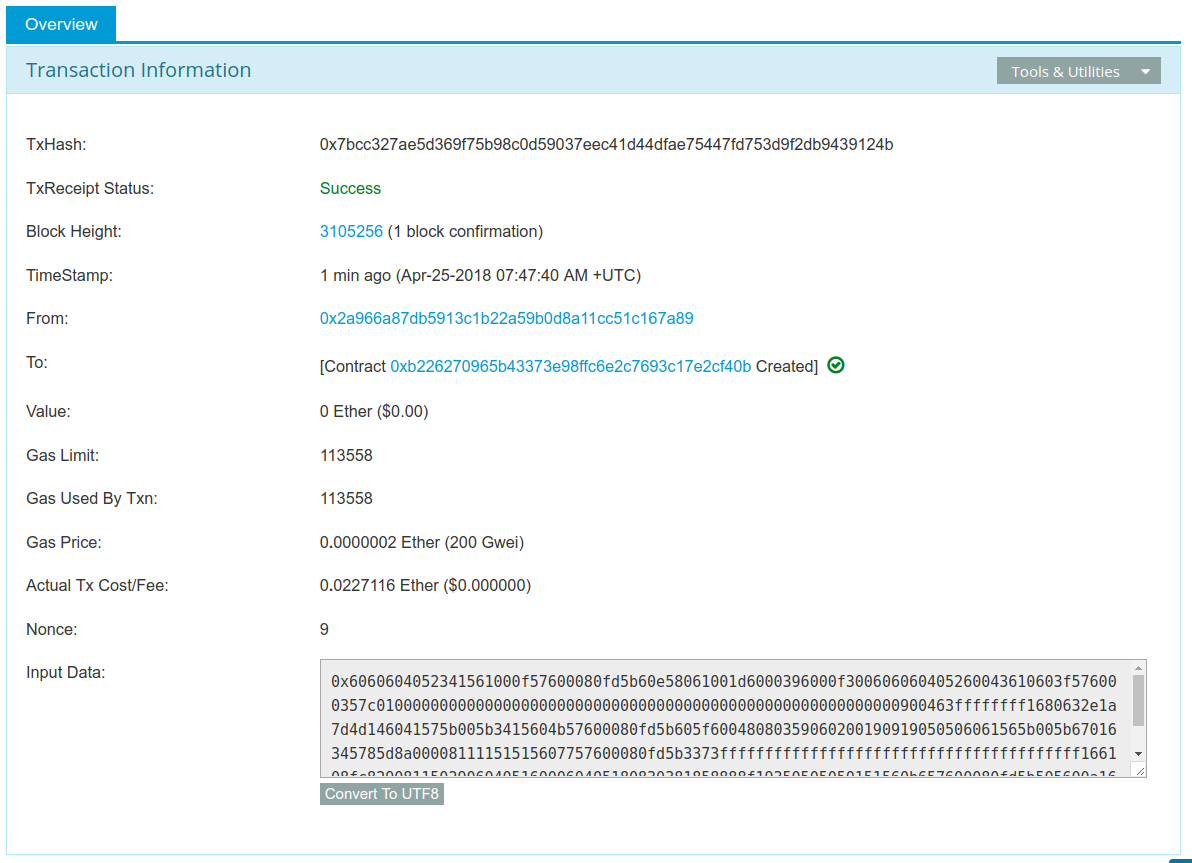

We now have a contract recorded on the blockchain, and we can see it has an Ethereum address. Let’s check it out in the ropsten.etherscan.io block explorer and see what a contract looks like. In the Remix IDE, copy the address of the contract by clicking the clipboard icon next to its name (see Copy the contract address from Remix).

Keep Remix open; we’ll come back to it again later. Now, navigate your browser to ropsten.etherscan.io and paste the address into the search box. You should see the contract’s Ethereum address history, as shown in View the Faucet contract address in the Etherscan block explorer.

For now, the contract only has one transaction in its history: the contract creation transaction. As you can see, the contract also has no ether (zero balance). That’s because we didn’t send any ether to the contract in the creation transaction, even though we could have.

Our faucet needs funds! Our first project will be to use MetaMask to send ether to the contract. You should still have the address of the contract in your clipboard (if not, copy it again from Remix). Open MetaMask, and send 1 ether to it, exactly as you would to any other Ethereum address (see Send 1 ether to the contract address).

In a minute, if you reload the Etherscan block explorer, it will show another transaction to the contract address and an updated balance of 1 ether.

Remember the unnamed default external payable function in our Faucet.sol code? It looked like this:

When you sent a transaction to the contract address, with no data specifying which function to call, it called this default function. Because we declared it as payable, it accepted and deposited the 1 ether into the contract’s account balance. Your transaction caused the contract to run in the EVM, updating its balance. You have funded your faucet!

Next, let’s withdraw some funds from the faucet. To withdraw, we have to construct a transaction that calls the withdraw function and passes a withdraw_amount argument to it. To keep things simple for now, Remix will construct that transaction for us and MetaMask will present it for our approval.

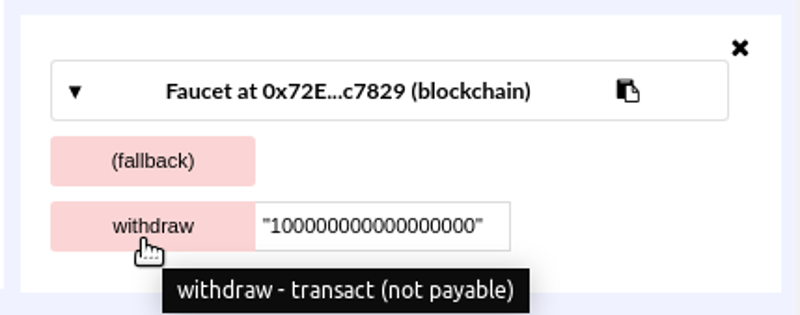

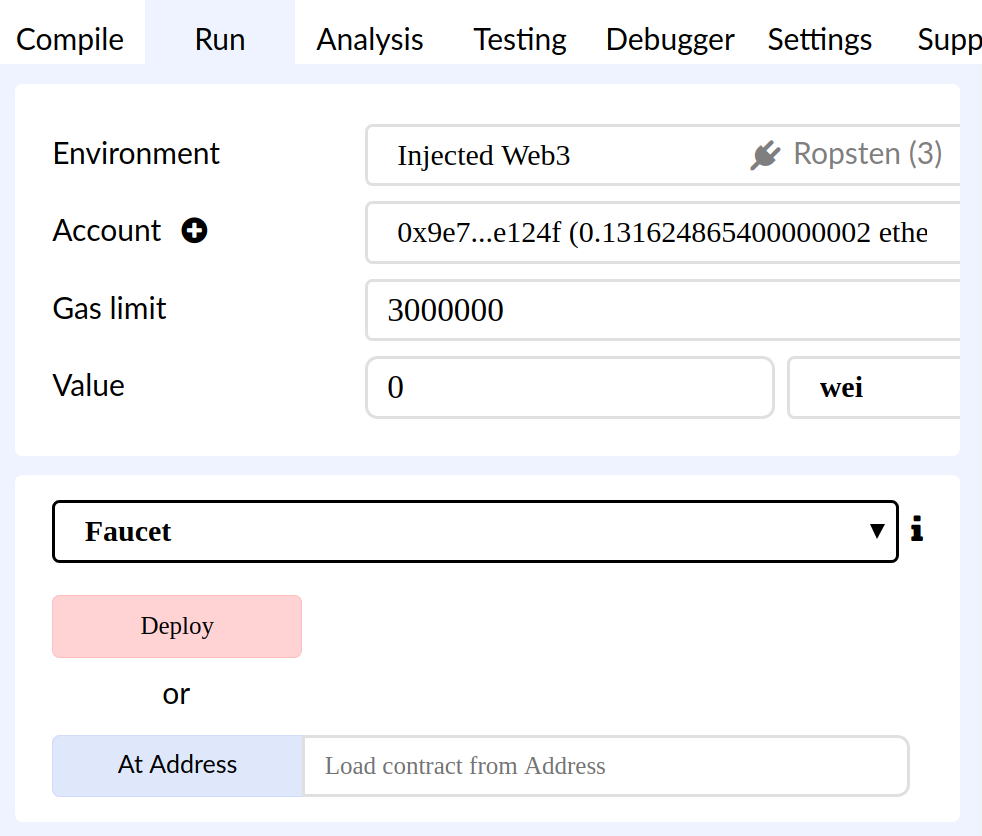

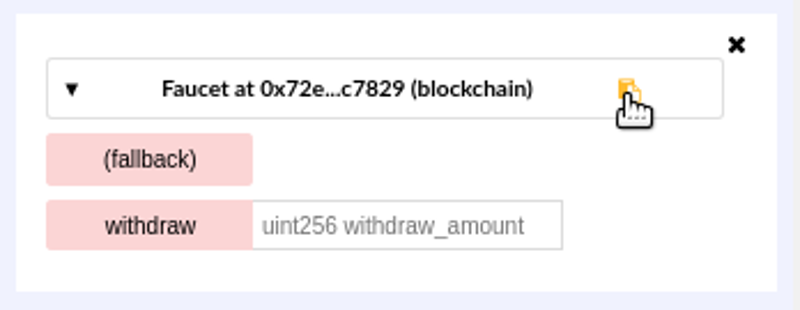

Return to the Remix tab and look at the contract on the Run tab. You should see a orange box labeled withdraw with a field entry labeled uint256 withdraw_amount (see The withdraw function of Faucet.sol, in Remix).

This is the Remix interface to the contract. It allows us to construct transactions that call the functions defined in the contract. We will enter a withdraw_amount and click the withdraw button to generate the transaction.

First, let’s figure out the withdraw_amount. We want to try and withdraw 0.1 ether, which is the maximum amount allowed by our contract. Remember that all currency values in Ethereum are denominated in wei internally, and our withdraw function expects the withdraw_amount to be denominated in wei too. The amount we want is 0.1 ether, which is 100,000,000,000,000,000 wei (a 1 followed by 17 zeros).

Type "100000000000000000" (with the quotes) into the withdraw_amount box and click on the withdraw button (see Click "withdraw" in Remix to create a withdrawal transaction).

MetaMask will pop up a transaction window for you to approve. Click Confirm to send your withdrawal call to the contract (see MetaMask transaction to call the withdraw function).

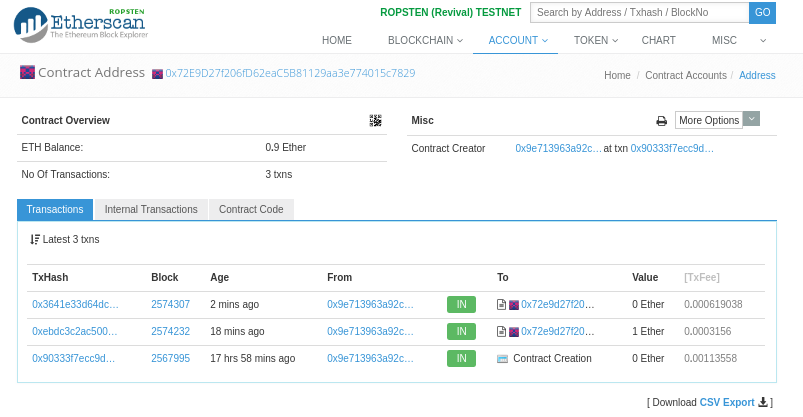

Wait a minute and then reload the Etherscan block explorer to see the transaction reflected in the Faucet contract address history (see Etherscan shows the transaction calling the withdraw function).

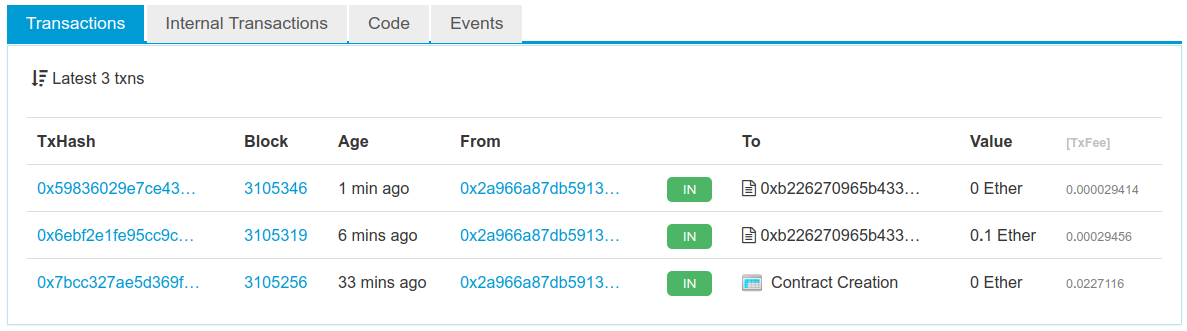

We now see a new transaction with the contract address as the destination and a value of 0 ether. The contract balance has changed and is now 0.9 ether because it sent us 0.1 ether as requested. But we don’t see an "OUT" transaction in the contract address history.

Where’s the outgoing withdrawal? A new tab has appeared on the contract’s address history page, named Internal Transactions. Because the 0.1 ether transfer originated from the contract code, it is an internal transaction (also called a message). Click on that tab to see it (see Etherscan shows the internal transaction transferring ether out from the contract).

This "internal transaction" was sent by the contract in this line of code (from the withdraw function in Faucet.sol):

To recap: you sent a transaction from your MetaMask wallet that contained data instructions to call the withdraw function with a withdraw_amount argument of 0.1 ether. That transaction caused the contract to run inside the EVM. As the EVM ran the Faucet contract’s withdraw function, first it called the require function and validated that the requested amount was less than or equal to the maximum allowed withdrawal of 0.1 ether. Then it called the transfer function to send you the ether. Running the transfer function generated an internal transaction that deposited 0.1 ether into your wallet address, from the contract’s balance. That’s the one shown on the Internal Transactions tab in Etherscan.

The health, resilience, and censorship resistance of blockchains depend on them having many independently operated and geographically dispersed full nodes. Each full node can help other new nodes obtain the block data to bootstrap their operation, as well as offering the operator an authoritative and independent verification of all transactions and contracts.

However, running a full node will incur a cost in hardware resources and bandwidth. A full node may download up to 300 GB of data (as of March 2021, depending on the client configuration) and store it on a local hard drive. This data burden increases quite rapidly every day as new transactions and blocks are added. We discuss this topic in greater detail in Hardware Requirements for a Full Node.

A full node running on a live mainnet network is not necessary for Ethereum development. You can do almost everything you need to do with a testnet node (which connects you to one of the smaller public test blockchains), with a local private blockchain like Ganache, or with a cloud-based Ethereum client offered by a service provider like Infura.

You also have the option of running a remote client, which does not store a local copy of the blockchain or validate blocks and transactions. These clients offer the functionality of a wallet and can create and broadcast transactions. Remote clients can be used to connect to existing networks, such as your own full node, a public blockchain, a public or permissioned (proof-of-authority) testnet, or a private local blockchain. In practice, you will likely use a remote client such as MetaMask, Emerald Wallet, MyEtherWallet, or MyCrypto as a convenient way to switch between all of the different node options.

The terms "remote client" and "wallet" are used interchangeably, though there are some differences. Usually, a remote client offers an API (such as the web3.js API) in addition to the transaction functionality of a wallet.

Do not confuse the concept of a remote wallet in Ethereum with that of a light client (which is analogous to a Simplified Payment Verification client in Bitcoin). Light clients validate block headers and use Merkle proofs to validate the inclusion of transactions in the blockchain and determine their effects, giving them a similar level of security to a full node. Conversely, Ethereum remote clients do not validate block headers or transactions. They entirely trust a full client to give them access to the blockchain, and hence lose significant security and anonymity guarantees. You can mitigate these problems by using a full client you run yourself.

Choosing to run a full node helps with the operation of the networks you connect it to, but also incurs some mild to moderate costs for you. Let’s look at some of the advantages and disadvantages.

Advantages:

Disadvantages:

Whether or not you choose to run a full node, you will probably want to run a public testnet node. Let’s look at some of the advantages and disadvantages of using a public testnet.

Advantages:

Disadvantages:

For many testing purposes, the best option is to launch a single-instance private blockchain. Ganache (formerly named testrpc) is one of the most popular local blockchain simulations that you can interact with, without any other participants. It shares many of the advantages and disadvantages of the public testnet, but also has some differences.

Advantages:

Disadvantages:

Before we get started, you should ensure you have a computer with sufficient resources to run an Ethereum full node. You will need at least 300 GB of disk space to store a full copy of the Ethereum blockchain. If you also want to run a full node on the Ethereum testnet, you will need at least an additional 75 GB. Downloading 375 GB of blockchain data can take a long time, so it’s recommended that you work on a fast internet connection.

Syncing the Ethereum blockchain is very input/output (I/O) intensive. It is best to have a solid-state drive (SSD). If you have a mechanical hard disk drive (HDD), you will need at least 8 GB of RAM to use as cache. Otherwise, you may discover that your system is too slow to keep up and sync fully.

Minimum requirements:

These are the minimum requirements to sync a full (but pruned) copy of an Ethereum-based blockchain.

At the time of writing the Parity codebase is lighter on resources, so if you’re running with limited hardware you’ll likely see better results using Parity.

If you want to sync in a reasonable amount of time and store all the development tools, libraries, clients, and blockchains we discuss in this book, you will want a more capable computer.

Recommended specifications:

It’s difficult to predict how fast a blockchain’s size will increase and when more disk space will be required, so it’s recommended to check the blockchain’s latest size before you start syncing.

These links provide up-to-date estimates of the blockchain size:

This section covers Parity and Geth client software. It also assumes you are using a Unix-like command-line environment. The examples show the commands and output as they appear on an Ubuntu GNU/Linux operating system running the bash shell (command-line execution environment).

Typically every blockchain will have its own version of Geth, while Parity provides support for multiple Ethereum-based blockchains (Ethereum, Ethereum Classic, Ellaism, Expanse, Musicoin) with the same client download.

Before we get started, you may need to install some software. If you’ve never done any software development on the computer you are currently using, you will probably need to install some basic tools. For the examples that follow, you will need to install git, the source-code management system; golang, the Go programming language and standard libraries; and Rust, a systems programming language.

Git can be installed by following the instructions at https://git-scm.com.

Go can be installed by following the instructions at https://golang.org, or https://github.com/golang/go/wiki/Ubuntu if you are using Ubuntu.

Rust can be installed by following the instructions at https://www.rustup.rs/.

Parity also requires some software libraries, such as OpenSSL and libudev. To install these on a Ubuntu or Debian GNU/Linux compatible system, use the following command:

For other operating systems, use the package manager of your OS or follow the Wiki instructions to install the required libraries.

Now that you have git, golang, Rust, and the necessary libraries installed, let’s get to work!

Parity is an implementation of a full-node Ethereum client and DApp browser. It was written “from the ground up” in Rust, a systems programming language, with the aim of building a modular, secure, and scalable Ethereum client. Parity is developed by Parity Tech, a UK company, and is released under the GPLv3 free software license.

To install Parity, you can use the Rust package manager cargo or download the source code from GitHub. The package manager also downloads the source code, so there’s not much difference between the two options. In the next section, we will show you how to download and compile Parity yourself.

Geth is the Go language implementation that is actively developed by the Ethereum Foundation, so is considered the "official" implementation of the Ethereum client. Typically, every Ethereum-based blockchain will have its own Geth implementation. If you’re running Geth, then you’ll want to make sure you grab the correct version for your blockchain using one of the following repository links:

Now that you understand the challenges of the "first sync," you’re ready to start an Ethereum client and sync the blockchain. For both Geth and Parity, you can use the --help option to see all the configuration parameters. The default settings are usually sensible and appropriate for most uses. Choose how to configure any optional parameters to suit your needs, then start Geth or Parity to sync the chain. Then wait…​

Ethereum clients offer an application programming interface and a set of Remote Procedure Call (RPC) commands, which are encoded as JavaScript Object Notation (JSON). You will see this referred to as the JSON-RPC API. Essentially, the JSON-RPC API is an interface that allows us to write programs that use an Ethereum client as a gateway to an Ethereum network and blockchain.

Usually, the RPC interface is offered as an HTTP service on port 8545. For security reasons it is restricted, by default, to only accept connections from localhost (the IP address of your own computer, which is 127.0.0.1).

To access the JSON-RPC API, you can use a specialized library (written in the programming language of your choice) that provides "stub" function calls corresponding to each available RPC command, or you can manually construct HTTP requests and send/receive JSON-encoded requests. You can even use a generic command-line HTTP client, like curl, to call the RPC interface. Let’s try that. First, ensure that you have Geth up and running, configured with --rpc to allow HTTP access to the RPC interface, then switch to a new terminal window (e.g., with Ctrl-Shift-N or Ctrl-Shift-T in an existing terminal window) as shown here:

In this example, we use curl to make an HTTP connection to the address http://localhost:8545. We are already running geth, which offers the JSON-RPC API as an HTTP service on port 8545. We instruct curl to use the HTTP POST command and to identify the content as type application/json. Finally, we pass a JSON-encoded request as the data component of our HTTP request. Most of our command line is just setting up curl to make the HTTP connection correctly. The interesting part is the actual JSON-RPC command we issue:

The JSON-RPC request is formatted according to the JSON-RPC 2.0 specification. Each request contains four elements:

The response we receive is:

This tells us that the JSON-RPC API is being served by Geth client version 1.9.11.

Let’s try something a bit more interesting. In the next example, we ask the JSON-RPC API for the current price of gas in wei:

The response, 0x430e23400, tells us that the current gas price is 18 gwei (gigawei or billion wei). If, like us, you don’t think in hexadecimal, you can convert it to decimal on the command line with a little bash-fu:

The full JSON-RPC API can be investigated on the Ethereum wiki.

All mobile wallets are remote clients, because smartphones do not have adequate resources to run a full Ethereum client. Light clients are in development and not in general use for Ethereum. In the case of Parity, the light client is marked "experimental" and can be used by running parity with the --light option.

Popular mobile wallets include the following (we list these merely as examples; this is not an endorsement or an indication of the security or functionality of these wallets):

A variety of wallets and DApp browsers are available as plug-ins or extensions of web browsers such as Chrome and Firefox. These are remote clients that run inside your browser.

Some of the more popular ones are MetaMask, Jaxx, MyEtherWallet, and MyCrypto.

The first and most important step in generating keys is to find a secure source of entropy, or randomness. Creating an Ethereum private key essentially involves picking a number between 1 and 2²⁵⁶. The exact method you use to pick that number does not matter as long as it is not predictable or deterministic. Ethereum software uses the underlying operating system’s random number generator to produce 256 random bits. Usually, the OS random number generator is initialized by a human source of randomness, which is why you may be asked to wiggle your mouse around for a few seconds, or press random keys on your keyboard. An alternative could be cosmic radiation noise on the computer’s microphone channel.

More precisely, a private key can be any nonzero number up to a very large number slightly less than 2²⁵⁶—a huge 78-digit number, roughly 1.158 * 10⁷⁷. The exact number shares the first 38 digits with 2²⁵⁶ and is defined as the order of the elliptic curve used in Ethereum (see Elliptic Curve Cryptography Explained). To create a private key, we randomly pick a 256-bit number and check that it is within the valid range. In programming terms, this is usually achieved by feeding an even larger string of random bits (collected from a cryptographically secure source of randomness) into a 256-bit hash algorithm such as Keccak-256 or SHA-256, both of which will conveniently produce a 256-bit number. If the result is within the valid range, we have a suitable private key. Otherwise, we simply try again with another random number.

Note that the private key generation process is an offline one; it does not require any communication with the Ethereum network, or indeed any communication with anyone at all. As such, in order to pick a number that no one else will ever pick, it needs to be truly random. If you choose the number yourself, the chance that someone else will try it (and then run off with your ether) is too high. Using a bad random number generator (like the pseudorandom rand function in most programming languages) is even worse, because it is even more obvious and even easier to replicate. Just like with passwords for online accounts, the private key needs to be unguessable. Fortunately, you never need to remember your private key, so you can take the best possible approach for picking it: namely, true randomness.

The following is a randomly generated private key shown in hexadecimal format (256 bits shown as 64 hexadecimal digits, each 4 bits):

Elliptic curve cryptography is a type of asymmetric or public key cryptography based on the discrete logarithm problem as expressed by addition and multiplication on the points of an elliptic curve.

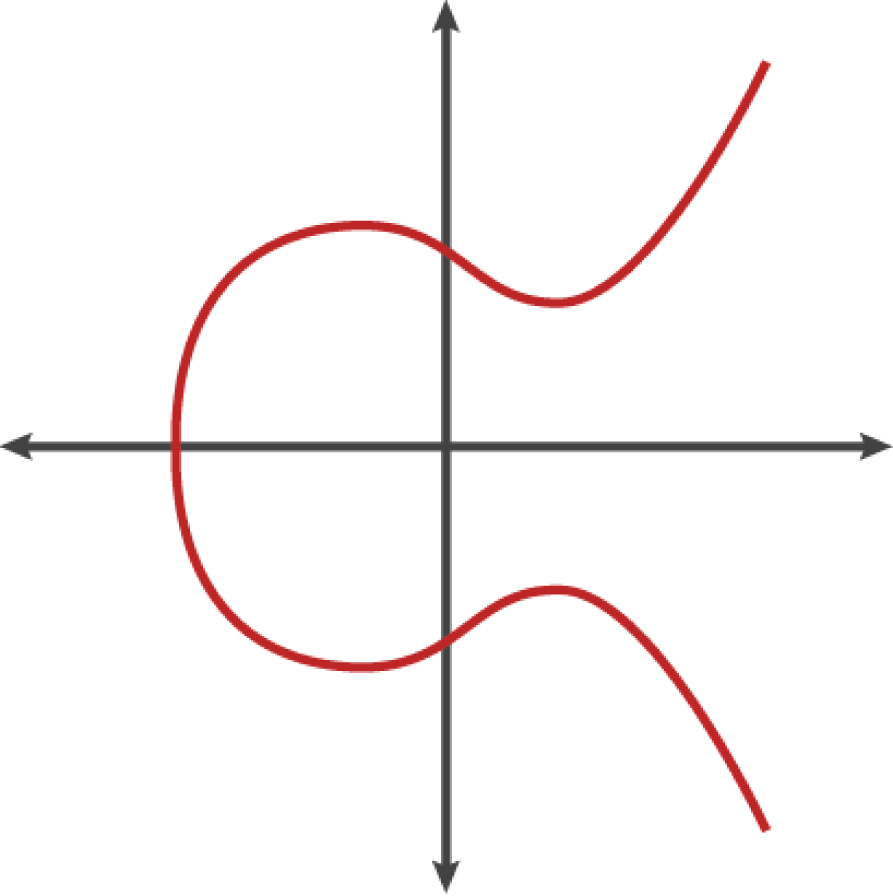

A visualization of an elliptic curve is an example of an elliptic curve, similar to that used by Ethereum.

Ethereum uses a specific elliptic curve and set of mathematical constants, as defined in a standard called secp256k1, established by the US National Institute of Standards and Technology (NIST). The secp256k1 curve is defined by the following function, which produces an elliptic curve:

or:

The mod p (modulo prime number p) indicates that this curve is over a finite field of prime order p, also written as \(\( \mathbb{F}_p \)\), where p = 2²⁵⁶ – 2³² – 2⁹ – 2⁸ – 2⁷ – 2⁶ – 2⁴ – 1, which is a very large prime number.

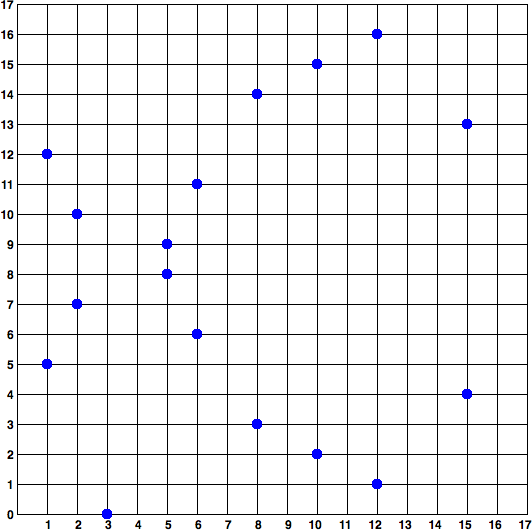

Because this curve is defined over a finite field of prime order instead of over the real numbers, it looks like a pattern of dots scattered in two dimensions, which makes it difficult to visualize. However, the math is identical to that of an elliptic curve over real numbers. As an example, Elliptic curve cryptography: visualizing an elliptic curve over F(p), with p=17 shows the same elliptic curve over a much smaller finite field of prime order 17, showing a pattern of dots on a grid. The secp256k1 Ethereum elliptic curve can be thought of as a much more complex pattern of dots on an unfathomably large grid.

So, for example, the following is a point Q with coordinates (x,y) that is a point on the secp256k1 curve:

[example_1] shows how you can check this yourself using Python. The variables x and y are the coordinates of the point Q, as in the preceding example. The variable p is the prime order of the elliptic curve (the prime that is used for all the modulo operations). The last line of Python is the elliptic curve equation (the % operator in Python is the modulo operator). If x and y are indeed the coordinates of a point on the elliptic curve, then they satisfy the equation and the result is zero (0L is a long integer with value zero). Try it yourself, by typing **python** on a command line and copying each line (after the prompt >>>) from the listing.

A lot of elliptic curve math looks and works very much like the integer arithmetic we learned at school. Specifically, we can define an addition operator, which instead of jumping along the number line is jumping to other points on the curve. Once we have the addition operator, we can also define multiplication of a point and a whole number, which is equivalent to repeated addition.

Elliptic curve addition is defined such that given two points P₁ and P₂ on the elliptic curve, there is a third point P₃ = P₁ + P₂, also on the elliptic curve.

Geometrically, this third point P₃ is calculated by drawing a line between P₁ and P₂. This line will intersect the elliptic curve in exactly one additional place (amazingly). Call this point P₃' = (x, y). Then reflect in the x-axis to get P₃ = (x, –y).

If P₁ and P₂ are the same point, the line "between" P₁ and P₂ should extend to be the tangent to the curve at this point P₁. This tangent will intersect the curve at exactly one new point. You can use techniques from calculus to determine the slope of the tangent line. Curiously, these techniques work, even though we are restricting our interest to points on the curve with two integer coordinates!

In elliptic curve math, there is also a point called the "point at infinity," which roughly corresponds to the role of the number zero in addition. On computers, it’s sometimes represented by x = y = 0 (which doesn’t satisfy the elliptic curve equation, but it’s an easy separate case that can be checked). There are a couple of special cases that explain the need for the point at infinity.

In some cases (e.g., if P₁ and P₂ have the same x values but different y values), the line will be exactly vertical, in which case P₃ = the point at infinity.

If P₁ is the point at infinity, then P₁ + P₂ = P₂. Similarly, if P₂ is the point at infinity, then P₁ + P₂ = P₁. This shows how the point at infinity plays the role that zero plays in "normal" arithmetic.

It turns out that + is associative, which means that (A + B) + C = A + (B + C). That means we can write A + B + C (without parentheses) without ambiguity.

Now that we have defined addition, we can define multiplication in the standard way that extends addition. For a point P on the elliptic curve, if k is a whole number, then k * P = P + P + P + …​ + P (k times). Note that k is sometimes (perhaps confusingly) called an "exponent" in this case.

Starting with a private key in the form of a randomly generated number k, we multiply it by a predetermined point on the curve called the generator point G to produce another point somewhere else on the curve, which is the corresponding public key K:

The generator point is specified as part of the secp256k1 standard; it is the same for all implementations of secp256k1, and all keys derived from that curve use the same point G. Because the generator point is always the same for all Ethereum users, a private key k multiplied with G will always result in the same public key K. The relationship between k and K is fixed, but can only be calculated in one direction, from k to K. That’s why an Ethereum address (derived from K) can be shared with anyone and does not reveal the user’s private key (k).

As we described in the previous section, the multiplication of k * G is equivalent to repeated addition, so G + G + G + …​ + G, repeated k times. In summary, to produce a public key K from a private key k, we add the generator point G to itself, k times.

Let’s apply this calculation to find the public key for the specific private key we showed you in Private Keys:

A cryptographic library can help us calculate K, using elliptic curve multiplication. The resulting public key K is defined as the point:

where:

In Ethereum you may see public keys represented as a serialization of 130 hexadecimal characters (65 bytes). This is adopted from a standard serialization format proposed by the industry consortium Standards for Efficient Cryptography Group (SECG), documented in Standards for Efficient Cryptography (SEC1). The standard defines four possible prefixes that can be used to identify points on an elliptic curve, listed in Serialized EC public key prefixes.

Ethereum only uses uncompressed public keys; therefore the only prefix that is relevant is (hex) 04. The serialization concatenates the x and y coordinates of the public key:

Therefore, the public key we calculated earlier is serialized as:

There are a couple of implementations of the secp256k1 elliptic curve that are used in cryptocurrency-related projects:

Ethereum uses the Keccak-256 cryptographic hash function in many places. Keccak-256 was designed as a candidate for the SHA-3 Cryptographic Hash Function Competition held in 2007 by the National Institute of Standards and Technology. Keccak was the winning algorithm, which became standardized as Federal Information Processing Standard (FIPS) 202 in 2015.

However, during the period when Ethereum was developed, the NIST standardization was not yet finalized. NIST adjusted some of the parameters of Keccak after the completion of the standards process, allegedly to improve its efficiency. This was occurring at the same time as heroic whistleblower Edward Snowden revealed documents that imply that NIST may have been improperly influenced by the National Security Agency to intentionally weaken the Dual_EC_DRBG random-number generator standard, effectively placing a backdoor in the standard random number generator. The result of this controversy was a backlash against the proposed changes and a significant delay in the standardization of SHA-3. At the time, the Ethereum Foundation decided to implement the original Keccak algorithm, as proposed by its inventors, rather than the SHA-3 standard as modified by NIST.

How can you tell if the software library you are using implements FIPS-202 SHA-3 or Keccak-256, if both might be called "SHA-3"?

An easy way to tell is to use a test vector, an expected output for a given input. The test most commonly used for a hash function is the empty input. If you run the hash function with an empty string as input you should see the following results:

Regardless of what the function is called, you can test it to see whether it is the original Keccak-256 or the final NIST standard FIPS-202 SHA-3 by running this simple test. Remember, Ethereum uses Keccak-256, even though it is often called SHA-3 in the code.

Next, let’s examine the first application of Keccak-256 in Ethereum, which is to produce Ethereum addresses from public keys.

Ethereum addresses are hexadecimal numbers, identifiers derived from the last 20 bytes of the Keccak-256 hash of the public key.

Unlike Bitcoin addresses, which are encoded in the user interface of all clients to include a built-in checksum to protect against mistyped addresses, Ethereum addresses are presented as raw hexadecimal without any checksum.

The rationale behind that decision was that Ethereum addresses would eventually be hidden behind abstractions (such as name services) at higher layers of the system and that checksums should be added at higher layers if necessary.

In reality, these higher layers were developed too slowly and this design choice led to a number of problems in the early days of the ecosystem, including the loss of funds due to mistyped addresses and input validation errors. Furthermore, because Ethereum name services were developed slower than initially expected, alternative encodings were adopted very slowly by wallet developers. We’ll look at a few of the encoding options next.

The Inter exchange Client Address Protocol (ICAP) is an Ethereum address encoding that is partly compatible with the International Bank Account Number (IBAN) encoding, offering a versatile, checksummed, and interoperable encoding for Ethereum addresses. ICAP addresses can encode Ethereum addresses or common names registered with an Ethereum name registry. You can read more about ICAP on the Ethereum Wiki.

IBAN is an international standard for identifying bank account numbers, mostly used for wire transfers. It is broadly adopted in the European Single Euro Payments Area (SEPA) and beyond. IBAN is a centralized and heavily regulated service. ICAP is a decentralized but compatible implementation for Ethereum addresses.

An IBAN consists of a string of up to 34 alphanumeric characters (case-insensitive) comprising a country code, checksum, and bank account identifier (which is country-specific).

ICAP uses the same structure by introducing a nonstandard country code, “XE,” that stands for "Ethereum,” followed by a two-character checksum and three possible variations of an account identifier:

We can use the helpeth command-line tool to create ICAP addresses. You can get helpeth by installing it with:

If you don’t have npm, you may have to install nodeJS first, which you can do by following the instructions at https://nodeJS.org.

Now that we have helpeth, let’s try creating an ICAP address with our example private key (prefixed with 0x and passed as a parameter to helpeth).

The helpeth command constructs a hexadecimal Ethereum address as well as an ICAP address for us. The ICAP address for our example key is:

Because our example Ethereum address happens to start with a zero byte, it can be encoded using the Direct ICAP encoding method that is valid in IBAN format. You can tell because it is 33 characters long.

If our address did not start with a zero, it would be encoded with the Basic encoding, which would be 35 characters long and invalid as an IBAN.

At this time, ICAP is unfortunately only supported by a few wallets.

Due to the slow deployment of ICAP and name services, a standard was proposed by Ethereum Improvement Proposal 55 (EIP-55). EIP-55 offers a backward-compatible checksum for Ethereum addresses by modifying the capitalization of the hexadecimal address. The idea is that Ethereum addresses are case-insensitive and all wallets are supposed to accept Ethereum addresses expressed in capital or lowercase characters, without any difference in interpretation.

By modifying the capitalization of the alphabetic characters in the address, we can convey a checksum that can be used to protect the integrity of the address against typing or reading mistakes. Wallets that do not support EIP-55 checksums simply ignore the fact that the address contains mixed capitalization, but those that do support it can validate it and detect errors with a 99.986% accuracy.

The mixed-capitals encoding is subtle and you may not notice it at first. Our example address is:

With an EIP-55 mixed-capitalization checksum it becomes:

Can you tell the difference? Some of the alphabetic (A–F) characters from the hexadecimal encoding alphabet are now capital, while others are lowercase.

EIP-55 is quite simple to implement. We take the Keccak-256 hash of the lowercase hexadecimal address. This hash acts as a digital fingerprint of the address, giving us a convenient checksum. Any small change in the input (the address) should cause a big change in the resulting hash (the checksum), allowing us to detect errors effectively. The hash of our address is then encoded in the capitalization of the address itself. Let’s break it down, step by step:

Our address contains an alphabetic character d in the fourth position. The fourth character of the hash is 6, which is less than 8. So, we leave the d lowercase. The next alphabetic character in our address is f, in the sixth position. The sixth character of the hexadecimal hash is c, which is greater than 8. Therefore, we capitalize the F in the address, and so on. As you can see, we only use the first 20 bytes (40 hex characters) of the hash as a checksum, since we only have 20 bytes (40 hex characters) in the address to capitalize appropriately.

Check the resulting mixed-capitals address yourself and see if you can tell which characters were capitalized and which characters they correspond to in the address hash:

In the first Ethereum wallet (produced for the Ethereum pre-sale), each wallet file stored a single randomly generated private key. Such wallets are being replaced with deterministic wallets because these "old-style" wallets are in many ways inferior. For example, it is considered good practice to avoid Ethereum address reuse as part of maximizing your privacy while using Ethereum—i.e., to use a new address (which needs a new private key) every time you receive funds. You can go further and use a new address for each transaction, although this can get expensive if you deal a lot with tokens. To follow this practice, a nondeterministic wallet will need to regularly increase its list of keys, which means you will need to make regular backups. If you ever lose your data (disk failure, drink accident, phone stolen) before you’ve managed to back up your wallet, you will lose access to your funds and smart contracts. The "type 0" nondeterministic wallets are the hardest to deal with, because they create a new wallet file for every new address in a "just in time" manner.

Nevertheless, many Ethereum clients (including geth) use a keystore file, which is a JSON-encoded file that contains a single (randomly generated) private key, encrypted by a passphrase for extra security. The JSON file’s contents look like this:

The keystore format uses a key derivation function (KDF), also known as a password stretching algorithm, which protects against brute-force, dictionary, and rainbow table attacks. In simple terms, the private key is not encrypted by the passphrase directly. Instead, the passphrase is stretched, by repeatedly hashing it. The hashing function is repeated for 262,144 rounds, which can be seen in the keystore JSON as the parameter crypto.kdfparams.n. An attacker trying to brute-force the passphrase would have to apply 262,144 rounds of hashing for every attempted passphrase, which slows down the attack sufficiently to make it infeasible for passphrases of sufficient complexity and length.

There are a number of software libraries that can read and write the keystore format, such as the JavaScript library keythereum.

Deterministic or "seeded" wallets are wallets that contain private keys that are all derived from a single master key, or seed. The seed is a randomly generated number that is combined with other data, such as an index number or "chain code" (see Extended public and private keys), to derive any number of private keys. In a deterministic wallet, the seed is sufficient to recover all the derived keys, and therefore a single backup, at creation time, is sufficient to secure all the funds and smart contracts in the wallet. The seed is also sufficient for a wallet export or import, allowing for easy migration of all the keys between different wallet implementations.

This design makes the security of the seed of utmost importance, as only the seed is needed to gain access to the entire wallet. On the other hand, being able to focus security efforts on a single piece of data can be seen as an advantage.

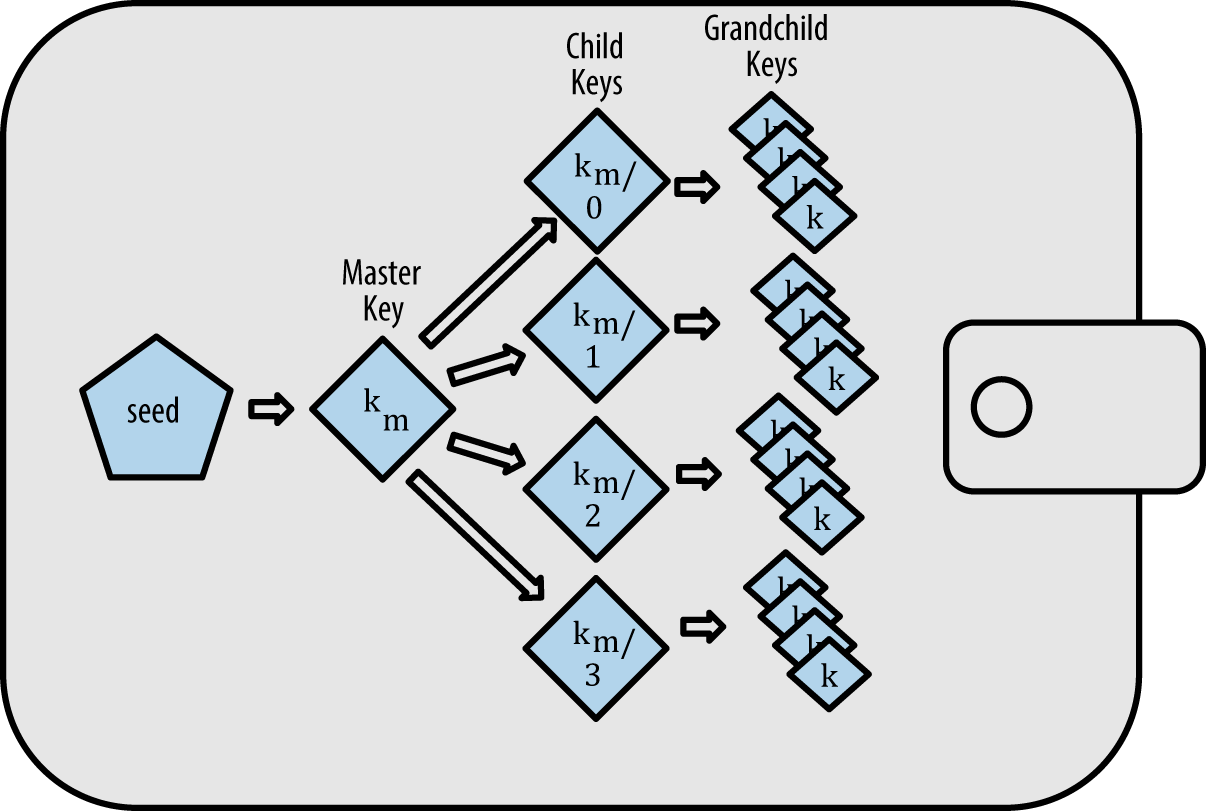

Deterministic wallets were developed to make it easy to derive many keys from a single seed. Currently, the most advanced form of deterministic wallet is the hierarchical deterministic (HD) wallet defined by Bitcoin’s BIP-32 standard. HD wallets contain keys derived in a tree structure, such that a parent key can derive a sequence of child keys, each of which can derive a sequence of grandchild keys, and so on. This tree structure is illustrated in HD wallet: a tree of keys generated from a single seed.

HD wallets offer a few key advantages over simpler deterministic wallets. First, the tree structure can be used to express additional organizational meaning, such as when a specific branch of subkeys is used to receive incoming payments and a different branch is used to receive change from outgoing payments. Branches of keys can also be used in corporate settings, allocating different branches to departments, subsidiaries, specific functions, or accounting categories.

The second advantage of HD wallets is that users can create a sequence of public keys without having access to the corresponding private keys. This allows HD wallets to be used on an insecure server or in a watch-only or receive-only capacity, where the wallet doesn’t have the private keys that can spend the funds.

There are many ways to encode a private key for secure backup and retrieval. The currently preferred method is using a sequence of words that, when taken together in the correct order, can uniquely recreate the private key. This is sometimes known as a mnemonic, and the approach has been standardized by BIP-39. Today, many Ethereum wallets (as well as wallets for other cryptocurrencies) use this standard, and can import and export seeds for backup and recovery using interoperable mnemonics.

To see why this approach has become popular, let’s have a look at an example:

In practical terms, the chance of an error when writing down the hex sequence is unacceptably high. In contrast, the list of known words is quite easy to deal with, mainly because there is a high level of redundancy in the writing of words (especially English words). If "inzect" had been recorded by accident, it could quickly be determined, upon the need for wallet recovery, that "inzect" is not a valid English word and that "insect" should be used instead. We are talking about writing down a representation of the seed because that is good practice when managing HD wallets: the seed is needed to recover a wallet in the case of data loss (whether through accident or theft), so keeping a backup is very prudent. However, the seed must be kept extremely private, so digital backups should be carefully avoided; hence the earlier advice to back up with pen and paper.

In summary, the use of a recovery word list to encode the seed for an HD wallet makes for the easiest way to safely export, transcribe, record on paper, read without error, and import a private key set into another wallet.

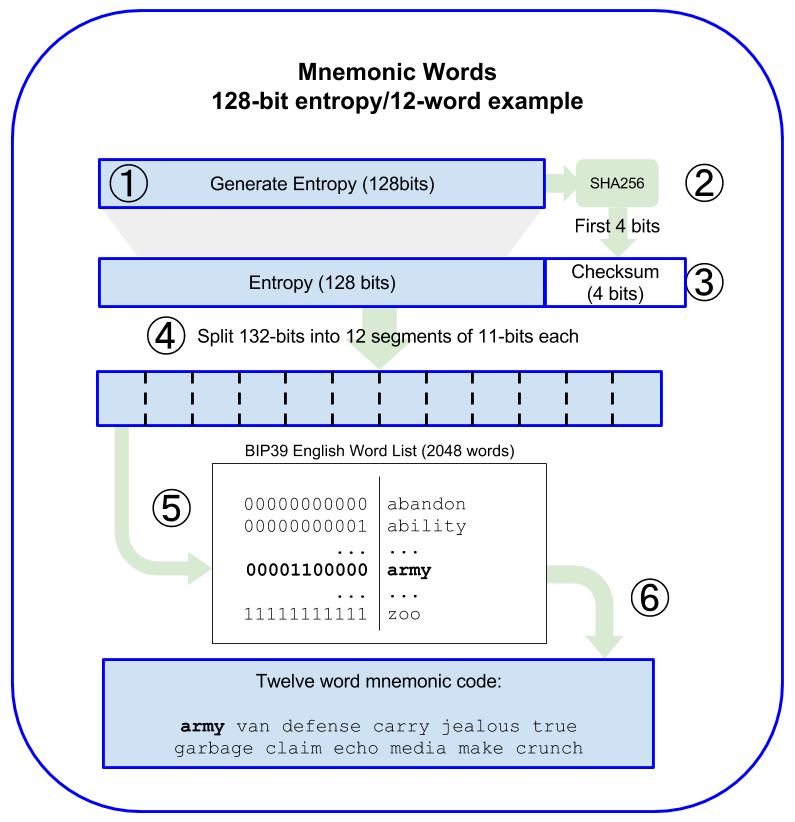

Mnemonic code words are word sequences that encode a random number used as a seed to derive a deterministic wallet. The sequence of words is sufficient to recreate the seed, and from there recreate the wallet and all the derived keys. A wallet application that implements deterministic wallets with mnemonic words will show the user a sequence of 12 to 24 words when first creating a wallet. That sequence of words is the wallet backup, and can be used to recover and recreate all the keys in the same or any compatible wallet application. As we explained earlier, mnemonic word lists make it easier for users to back up wallets, because they are easy to read and correctly transcribe.

Mnemonic codes are defined in BIP-39. Note that BIP-39 is one implementation of a mnemonic code standard. There is a different standard, with a different set of words, used by the Electrum Bitcoin wallet and predating BIP-39. BIP-39 was proposed by the company behind the Trezor hardware wallet and is incompatible with Electrum’s implementation. However, BIP-39 has now achieved broad industry support across dozens of interoperable implementations and should be considered the de facto industry standard. Furthermore, BIP-39 can be used to produce multicurrency wallets supporting Ethereum, whereas Electrum seeds cannot.

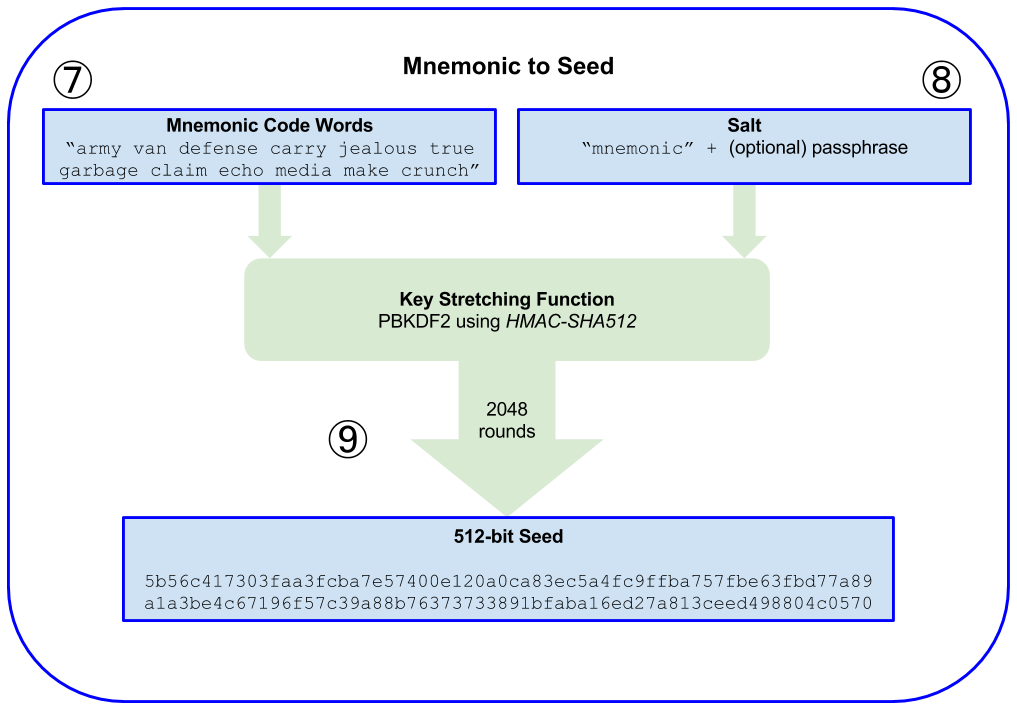

BIP-39 defines the creation of a mnemonic code and seed, which we describe here in nine steps. For clarity, the process is split into two parts: steps 1 through 6 are shown in Generating mnemonic words and steps 7 through 9 are shown in From mnemonic to seed.

HD wallets are created from a single root seed, which is a 128-, 256-, or 512-bit random number. Most commonly, this seed is generated from a mnemonic as detailed in the previous section.

Every key in the HD wallet is deterministically derived from this root seed, which makes it possible to recreate the entire HD wallet from that seed in any compatible HD wallet. This makes it easy to export, back up, restore, and import HD wallets containing thousands or even millions of keys by transferring just the mnemonic from which the root seed is derived.

Most HD wallets follow the BIP-32 standard, which has become a de facto industry standard for deterministic key generation.

We won’t be discussing all the details of BIP-32 here, only the components necessary to understand how it is used in wallets. The main important aspect is the tree-like hierarchical relationships that it is possible for the derived keys to have, as you can see in HD wallet: a tree of keys generated from a single seed. It’s also important to understand the ideas of extended keys and hardened keys, which are explained in the following sections.

There are dozens of interoperable implementations of BIP-32 offered in many software libraries. These are mostly designed for Bitcoin wallets, which implement addresses in a different way, but share the same key-derivation implementation as Ethereum’s BIP-32-compatible wallets. Use one designed for Ethereum, or adapt one from Bitcoin by adding an Ethereum address encoding library.

There is also a BIP-32 generator implemented as a standalone web page that is very useful for testing and experimentation with BIP-32.

In practical terms, the nonce is an up-to-date count of the number of confirmed (i.e., on-chain) transactions that have originated from an account. To find out what the nonce is, you can interrogate the blockchain, for example via the web3 interface. Open a JavaScript console in Geth (or your preferred web3 interface) on Ropsten testnet, then type:

Your wallet will keep track of nonces for each address it manages. It’s fairly simple to do that, as long as you are only originating transactions from a single point. Let’s say you are writing your own wallet software or some other application that originates transactions. How do you track nonces?

When you create a new transaction, you assign the next nonce in the sequence. But until it is confirmed, it will not count toward the getTransactionCount total.

Let’s look at an example:

As you can see, the first transaction we sent increased the transaction count to 41, showing the pending transaction. But when we sent three more transactions in quick succession, the getTransactionCount call didn’t count them. It only counted one, even though you might expect there to be three pending in the mempool. If we wait a few seconds to allow for network communications to settle down, the getTransactionCount call will return the expected number. But in the interim, while there is more than one transaction pending, it might not help us.

When you build an application that constructs transactions, it cannot rely on getTransactionCount for pending transactions. Only when the pending and confirmed counts are equal (all outstanding transactions are confirmed) can you trust the output of getTransactionCount to start your nonce counter. Thereafter, keep track of the nonce in your application until each transaction confirms.

Parity’s JSON RPC interface offers the parity_nextNonce function, which returns the next nonce that should be used in a transaction. The parity_nextNonce function counts nonces correctly, even if you construct several transactions in rapid succession without confirming them:

It is important to keep track of nonces if you are creating transactions programmatically, especially if you are doing so from multiple independent processes simultaneously.

The Ethereum network processes transactions sequentially, based on the nonce. That means that if you transmit a transaction with nonce 0 and then transmit a transaction with nonce 2, the second transaction will not be included in any blocks. It will be stored in the mempool, while the Ethereum network waits for the missing nonce to appear. All nodes will assume that the missing nonce has simply been delayed and that the transaction with nonce 2 was received out of sequence.

If you then transmit a transaction with the missing nonce 1, both transactions (nonces 1 and 2) will be processed and included (if valid, of course). Once you fill the gap, the network can mine the out-of-sequence transaction that it held in the mempool.

What this means is that if you create several transactions in sequence and one of them does not get officially included in any blocks, all the subsequent transactions will be "stuck," waiting for the missing nonce. A transaction can create an inadvertent "gap" in the nonce sequence because it is invalid or has insufficient gas. To get things moving again, you have to transmit a valid transaction with the missing nonce. You should be equally mindful that once a transaction with the "missing" nonce is validated by the network, all the broadcast transactions with subsequent nonces will incrementally become valid; it is not possible to "recall" a transaction!

If, on the other hand, you accidentally duplicate a nonce, for example by transmitting two transactions with the same nonce but different recipients or values, then one of them will be confirmed and one will be rejected. Which one is confirmed will be determined by the sequence in which they arrive at the first validating node that receives them—i.e., it will be fairly random.

As you can see, keeping track of nonces is necessary, and if your application doesn’t manage that process correctly you will run into problems. Unfortunately, things get even more difficult if you are trying to do this concurrently, as we will see in the next section.

Concurrency is a complex aspect of computer science, and it crops up unexpectedly sometimes, especially in decentralized and distributed real-time systems like Ethereum.

In simple terms, concurrency is when you have simultaneous computation by multiple independent systems. These can be in the same program (e.g., multithreading), on the same CPU (e.g., multiprocessing), or on different computers (i.e., distributed systems). Ethereum, by definition, is a system that allows concurrency of operations (nodes, clients, DApps) but enforces a singleton state through consensus.

Now, imagine that you have multiple independent wallet applications that are generating transactions from the same address or addresses. One example of such a situation would be an exchange processing withdrawals from the exchange’s hot wallet (a wallet whose keys are stored online, in contrast to a cold wallet where the keys are never online). Ideally, you’d want to have more than one computer processing withdrawals, so that it doesn’t become a bottleneck or single point of failure. However, this quickly becomes problematic, as having more than one computer producing withdrawals will result in some thorny concurrency problems, not least of which is the selection of nonces. How do multiple computers generating, signing, and broadcasting transactions from the same hot wallet account coordinate?

You could use a single computer to assign nonces, on a first-come first-served basis, to computers signing transactions. However, this computer is now a single point of failure. Worse, if several nonces are assigned and one of them never gets used (because of a failure in the computer processing the transaction with that nonce), all subsequent transactions get stuck.

Another approach would be to generate the transactions, but not assign a nonce to them (and therefore leave them unsigned—remember that the nonce is an integral part of the transaction data and therefore needs to be included in the digital signature that authenticates the transaction). You could then queue them to a single node that signs them and also keeps track of nonces. Again, though, this would be a choke point in the process: the signing and tracking of nonces is the part of your operation that is likely to become congested under load, whereas the generation of the unsigned transaction is the part you don’t really need to parallelize. You would have some concurrency, but it would be lacking in a critical part of the process.

In the end, these concurrency problems, on top of the difficulty of tracking account balances and transaction confirmations in independent processes, force most implementations toward avoiding concurrency and creating bottlenecks such as a single process handling all withdrawal transactions in an exchange, or setting up multiple hot wallets that can work completely independently for withdrawals and only need to be intermittently rebalanced.

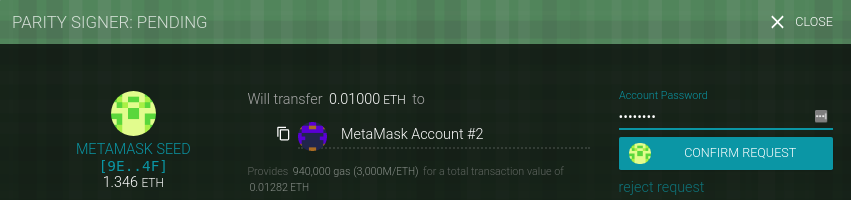

When you construct an Ethereum transaction that contains a value, it is the equivalent of a payment. Such transactions behave differently depending on whether the destination address is a contract or not.

For EOA addresses, or rather for any address that isn’t flagged as a contract on the blockchain, Ethereum will record a state change, adding the value you sent to the balance of the address. If the address has not been seen before, it will be added to the client’s internal representation of the state and its balance initialized to the value of your payment.

If the destination address (to) is a contract, then the EVM will execute the contract and will attempt to call the function named in the data payload of your transaction. If there is no data in your transaction, the EVM will call a fallback function and, if that function is payable, will execute it to determine what to do next. If there is no code in fallback function, then the effect of the transaction will be to increase the balance of the contract, exactly like a payment to a wallet. If there is no fallback function or non-payable fallback function, then transaction will be reverted.

A contract can reject incoming payments by throwing an exception immediately when a function is called, or as determined by conditions coded in a function. If the function terminates successfully (without an exception), then the contract’s state is updated to reflect an increase in the contract’s ether balance.

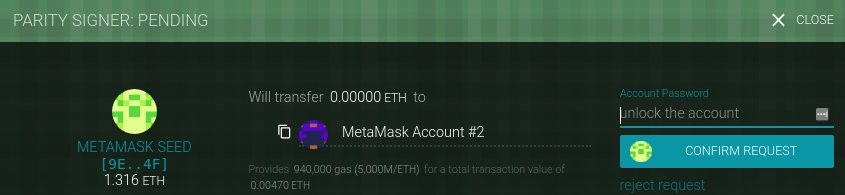

When your transaction contains data, it is most likely addressed to a contract address. That doesn’t mean you cannot send a data payload to an EOA—that is completely valid in the Ethereum protocol. However, in that case, the interpretation of the data is up to the wallet you use to access the EOA. It is ignored by the Ethereum protocol. Most wallets also ignore any data received in a transaction to an EOA they control. In the future, it is possible that standards may emerge that allow wallets to interpret data the way contracts do, thereby allowing transactions to invoke functions running inside user wallets. The critical difference is that any interpretation of the data payload by an EOA is not subject to Ethereum’s consensus rules, unlike a contract execution.

For now, let’s assume your transaction is delivering data to a contract address. In that case, the data will be interpreted by the EVM as a contract invocation. Most contracts use this data more specifically as a function invocation, calling the named function and passing any encoded arguments to the function.

The data payload sent to an ABI-compatible contract (which you can assume all contracts are) is a hex-serialized encoding of:

In Faucet.sol: A Solidity contract implementing a faucet, we defined a function for withdrawals:

The prototype of a function is defined as the string containing the name of the function, followed by the data types of each of its arguments, enclosed in parentheses and separated by commas. The function name here is withdraw and it takes a single argument that is a uint (which is an alias for uint256), so the prototype of withdraw would be:

Let’s calculate the Keccak-256 hash of this string:

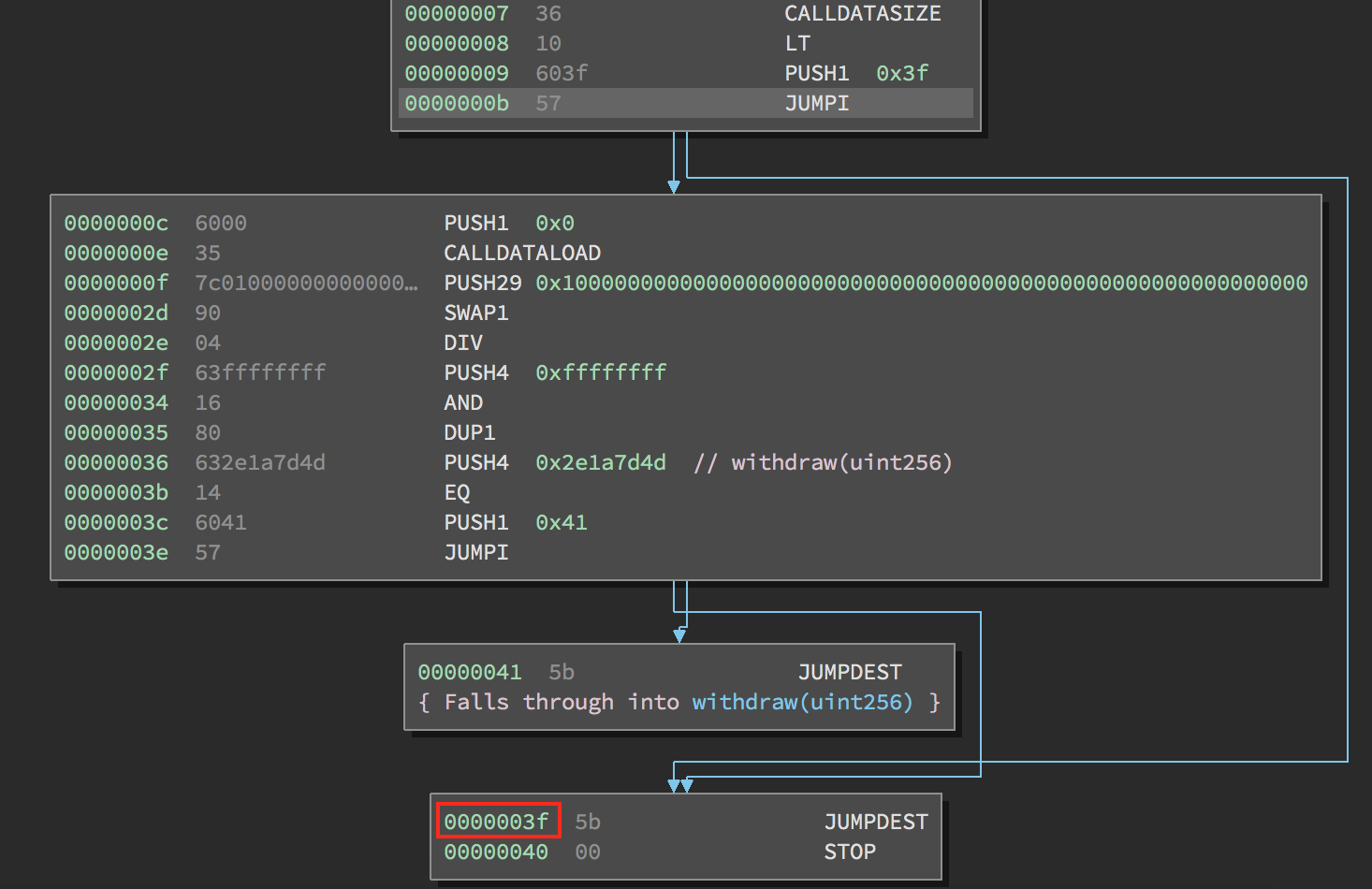

The first 4 bytes of the hash are 0x2e1a7d4d. That’s our "function selector" value, which will tell the contract which function we want to call.

Next, let’s calculate a value to pass as the argument withdraw_amount. We want to withdraw 0.01 ether. Let’s encode that to a hex-serialized big-endian unsigned 256-bit integer, denominated in wei:

Now, we add the function selector to the amount (padded to 32 bytes):

That’s the data payload for our transaction, invoking the withdraw function and requesting 0.01 ether as the withdraw_amount.

The digital signature algorithm used in Ethereum is the Elliptic Curve Digital Signature Algorithm (ECDSA). It’s based on elliptic curve private–public key pairs, as described in Elliptic Curve Cryptography Explained.

A digital signature serves three purposes in Ethereum (see the following sidebar). First, the signature proves that the owner of the private key, who is by implication the owner of an Ethereum account, has authorized the spending of ether, or execution of a contract. Secondly, it guarantees non-repudiation: the proof of authorization is undeniable. Thirdly, the signature proves that the transaction data has not been and cannot be modified by anyone after the transaction has been signed.

A digital signature is a mathematical scheme that consists of two parts. The first part is an algorithm for creating a signature, using a private key (the signing key), from a message (which in our case is the transaction). The second part is an algorithm that allows anyone to verify the signature by only using the message and a public key.

To verify the signature, one must have the signature (r and s), the serialized transaction, and the public key that corresponds to the private key used to create the signature. Essentially, verification of a signature means "only the owner of the private key that generated this public key could have produced this signature on this transaction."

The signature verification algorithm takes the message (i.e., a hash of the transaction for our usage), the signer’s public key, and the signature (r and s values), and returns true if the signature is valid for this message and public key.

As mentioned previously, signatures are created by a mathematical function F_sig that produces a signature composed of two values, r and s. In this section we look at the function F_sig in more detail.

The signature algorithm first generates an ephemeral (temporary) private key in a cryptographically secure way. This temporary key is used in the calculation of the r and s values to ensure that the sender’s actual private key can’t be calculated by attackers watching signed transactions on the Ethereum network.

As we know from Public Keys, the ephemeral private key is used to derive the corresponding (ephemeral) public key, so we have:

The r value of the digital signature is then the x coordinate of the ephemeral public key Q.

From there, the algorithm calculates the s value of the signature, such that:

where:

Verification is the inverse of the signature generation function, using the r and s values and the sender’s public key to calculate a value Q, which is a point on the elliptic curve (the ephemeral public key used in signature creation). The steps are as follows:

where:

If the x coordinate of the calculated point Q is equal to r, then the verifier can conclude that the signature is valid.

Note that in verifying the signature, the private key is neither known nor revealed.

To produce a valid transaction, the originator must digitally sign the message, using the Elliptic Curve Digital Signature Algorithm. When we say "sign the transaction" we actually mean "sign the Keccak-256 hash of the RLP-serialized transaction data." The signature is applied to the hash of the transaction data, not the transaction itself.

To sign a transaction in Ethereum, the originator must:

The special signature variable v indicates two things: the chain ID and the recovery identifier to help the ECDSArecover function check the signature. It is calculated as either one of 27 or 28, or as the chain ID doubled plus 35 or 36. For more information on the chain ID, see Raw Transaction Creation with EIP-155. The recovery identifier (27 or 28 in the "old-style" signatures, or 35 or 36 in the full Spurious Dragon–style transactions) is used to indicate the parity of the y component of the public key (see The Signature Prefix Value (v) and Public Key Recovery for more details).

In this section we’ll create a raw transaction and sign it, using the ethereumjs-tx library, which can be installed with npm. This demonstrates the functions that would normally be used inside a wallet, or an application that signs transactions on behalf of a user. The source code for this example is in the file raw_tx_demo.js in the book’s GitHub repository:

Running the example code produces the following results:

The EIP-155 "Simple Replay Attack Protection" standard specifies a replay-attack-protected transaction encoding, which includes a chain identifier inside the transaction data, prior to signing. This ensures that transactions created for one blockchain (e.g., the Ethereum main network) are invalid on another blockchain (e.g., Ethereum Classic or the Ropsten test network). Therefore, transactions broadcast on one network cannot be replayed on another, hence the name of the standard.

EIP-155 adds three fields to the main six fields of the transaction data structure, namely the chain identifier, 0, and 0. These three fields are added to the transaction data before it is encoded and hashed. They therefore change the transaction’s hash, to which the signature is later applied. By including the chain identifier in the data being signed, the transaction signature prevents any changes, as the signature is invalidated if the chain identifier is modified. Therefore, EIP-155 makes it impossible for a transaction to be replayed on another chain, because the signature’s validity depends on the chain identifier.

The chain identifier field takes a value according to the network the transaction is meant for, as outlined in Chain identifiers.

The resulting transaction structure is RLP-encoded, hashed, and signed. The signature algorithm is modified slightly to encode the chain identifier in the v prefix too.

For more details, see the EIP-155 specification.

Solidity follows a versioning model called semantic versioning, which specifies version numbers structured as three numbers separated by dots: MAJOR.MINOR.PATCH. The "major" number is incremented for major and backward-incompatible changes, the "minor" number is incremented as backward-compatible features are added in between major releases, and the "patch" number is incremented for backward-compatible bug fixes.

At the time of writing, Solidity is at version 0.6.4. The rules for major version 0, which is for initial development of a project, are different: anything may change at any time. In practice, Solidity treats the "minor" number as if it were the major version and the "patch" number as if it were the minor version. Therefore, in 0.6.4, 6 is considered to be the major version and 4 the minor version.

The 0.5 major version release of Solidity is anticipated imminently.

As you saw in Ethereum Basics, your Solidity programs can contain a pragma directive that specifies the minimum and maximum versions of Solidity that it is compatible with, and can be used to compile your contract.

Since Solidity is rapidly evolving, it is often better to install the latest release.

There are a number of methods you can use to download and install Solidity, either as a binary release or by compiling from source code. You can find detailed instructions in the Solidity documentation.

Here’s how to install the latest binary release of Solidity on an Ubuntu/Debian operating system, using the apt package manager:

Once you have solc installed, check the version by running:

There are a number of other ways to install Solidity, depending on your operating system and requirements, including compiling from the source code directly. For more information see https://github.com/ethereum/solidity.

To develop in Solidity, you can use any text editor and solc on the command line. However, you might find that some text editors designed for development, such as Emacs, Vim, and Atom, offer additional features such as syntax highlighting and macros that make Solidity development easier.

There are also web-based development environments, such as Remix IDE and EthFiddle.

Use the tools that make you productive. In the end, Solidity programs are just plain text files. While fancy editors and development environments can make things easier, you don’t need anything more than a simple text editor, such as nano (Linux/Unix), TextEdit (macOS), or even NotePad (Windows). Simply save your program source code with a .sol extension and it will be recognized by the Solidity compiler as a Solidity program.

In Ethereum Basics, we wrote our first Solidity program. When we first built the Faucet contract, we used the Remix IDE to compile and deploy the contract. In this section, we will revisit, improve, and embellish Faucet.

Our first attempt looked like Faucet.sol: A Solidity contract implementing a faucet.

Now, we will use the Solidity compiler on the command line to compile our contract directly. The Solidity compiler solc offers a variety of options, which you can see by passing the --help argument.

We use the --bin and --optimize arguments of solc to produce an optimized binary of our example contract:

The result that solc produces is a hex-serialized binary that can be submitted to the Ethereum blockchain.

As we saw in the previous code, our Faucet contract compiles successfully with Solidity version 0.6.4. But what if we had used a different version of the Solidity compiler? The language is still in constant flux and things may change in unexpected ways. Our contract is fairly simple, but what if our program used a feature that was only added in Solidity version 0.6.1 and we tried to compile it with 0.6.0?

To resolve such issues, Solidity offers a compiler directive known as a version pragma that instructs the compiler that the program expects a specific compiler (and language) version. Let’s look at an example:

The Solidity compiler reads the version pragma and will produce an error if the compiler version is incompatible with the version pragma. In this case, our version pragma says that this program can be compiled by a Solidity compiler with a minimum version of 0.6.0. The symbol ^ states, however, that we allow compilation with any minor revision above 0.6.0; e.g., 0.6.1, but not 0.7.0 (which is a major revision, not a minor revision). Pragma directives are not compiled into EVM bytecode. They are only used by the compiler to check compatibility.

Let’s add a pragma directive to our Faucet contract. We will name the new file Faucet2.sol, to keep track of our changes as we proceed through these examples starting in Faucet2.sol: Adding the version pragma to Faucet.

Adding a version pragma is a best practice, as it avoids problems with mismatched compiler and language versions. We will explore other best practices and continue to improve the Faucet contract throughout this chapter.

First, let’s look at some of the basic data types offered in Solidity:

In addition to these data types, Solidity also offers a variety of value literals that can be used to calculate different units:

In our Faucet contract example, we used a uint (which is an alias for uint256) for the withdraw_amount variable. We also indirectly used an address variable, which we set with msg.sender. We will use more of these data types in our examples in the rest of this chapter.

Let’s use one of the unit multipliers to improve the readability of our example contract. In the withdraw function we limit the maximum withdrawal, expressing the limit in wei, the base unit of ether:

That’s not very easy to read. We can improve our code by using the unit multiplier ether, to express the value in ether instead of wei:

When a contract is executed in the EVM, it has access to a small set of global objects. These include the block, msg, and tx objects. In addition, Solidity exposes a number of EVM opcodes as predefined functions. In this section we will examine the variables and functions you can access from within a smart contract in Solidity.

Solidity’s principal data type is contract; our Faucet example simply defines a contract object. Similar to any object in an object-oriented language, the contract is a container that includes data and methods.

Solidity offers two other object types that are similar to a contract:

Within a contract, we define functions that can be called by an EOA transaction or another contract. In our Faucet example, we have two functions: withdraw and the (unnamed) fallback function.

The syntax we use to declare a function in Solidity is as follows:

Let’s look at each of these components:

The next set of keywords (public, private, internal, external) specify the function’s visibility:

Keep in mind that the terms internal and private are somewhat misleading. Any function or data inside a contract is always visible on the public blockchain, meaning that anyone can see the code or data. The keywords described here only affect how and when a function can be called.

The second set of keywords (pure, constant, view, payable) affect the behavior of the function:

As you can see in our Faucet example, we have one payable function (the fallback function), which is the only function that can receive incoming payments.

There is a special function that is only used once. When a contract is created, it also runs the constructor function if one exists, to initialize the state of the contract. The constructor is run in the same transaction as the contract creation. The constructor function is optional; you’ll notice our Faucet example doesn’t have one.

Constructors can be specified in two ways. Up to and including in Solidity v0.4.21, the constructor is a function whose name matches the name of the contract, as you can see here:

The difficulty with this format is that if the contract name is changed and the constructor function name is not changed, it is no longer a constructor. Likewise, if there is an accidental typo in the naming of the contract and/or constructor, the function is again no longer a constructor. This can cause some pretty nasty, unexpected, and difficult-to-find bugs. Imagine for example if the constructor is setting the owner of the contract for purposes of control. If the function is not actually the constructor because of a naming error, not only will the owner be left unset at the time of contract creation, but the function may also be deployed as a permanent and "callable" part of the contract, like a normal function, allowing any third party to hijack the contract and become the "owner" after contract creation.

To address the potential problems with constructor functions being based on having an identical name as the contract, Solidity v0.4.22 introduces a constructor keyword that operates like a constructor function but does not have a name. Renaming the contract does not affect the constructor at all. Also, it is easier to identify which function is the constructor. It looks like this:

To summarize, a contract’s life cycle starts with a creation transaction from an EOA or contract account. If there is a constructor, it is executed as part of contract creation, to initialize the state of the contract as it is being created, and is then discarded.

The other end of the contract’s life cycle is contract destruction. Contracts are destroyed by a special EVM opcode called SELFDESTRUCT. It used to be called SUICIDE, but that name was deprecated due to the negative associations of the word. In Solidity, this opcode is exposed as a high-level built-in function called selfdestruct, which takes one argument: the address to receive any ether balance remaining in the contract account. It looks like this:

Note that you must explicitly add this command to your contract if you want it to be deletable—this is the only way a contract can be deleted, and it is not present by default. In this way, users of a contract who might rely on a contract being there forever can be certain that a contract can’t be deleted if it doesn’t contain a SELFDESTRUCT opcode.

The Faucet example contract we introduced in Ethereum Basics does not have any constructor or selfdestruct functions. It is an eternal contract that cannot be deleted. Let’s change that, by adding a constructor and selfdestruct function. We probably want selfdestruct to be callable only by the EOA that originally created the contract. By convention, this is usually stored in an address variable called owner. Our constructor sets the owner variable, and the selfdestruct function will first check that the owner called it directly.

First, our constructor:

Our contract now has an address type variable named owner. The name "owner" is not special in any way. We could call this address variable "potato" and still use it the same way. The name owner simply makes its purpose clear.

Next, our constructor, which runs as part of the contract creation transaction, assigns the address from msg.sender to the owner variable. We used msg.sender in the withdraw function to identify the initiator of the withdrawal request. In the constructor, however, the msg.sender is the EOA or contract address that initiated contract creation. We know this is the case because this is a constructor function: it only runs once, during contract creation.

Now we can add a function to destroy the contract. We need to make sure that only the owner can run this function, so we will use a require statement to control access. Here’s how it will look:

If anyone calls this destroy function from an address other than owner, it will fail. But if the same address stored in owner by the constructor calls it, the contract will self-destruct and send any remaining balance to the owner address. Note that we did not use the unsafe tx.origin to determine whether the owner wished to destroy the contract—using tx.origin would allow malign contracts to destroy your contract without your permission.

Solidity offers a special type of function called a function modifier. You apply modifiers to functions by adding the modifier name in the function declaration. Modifiers are most often used to create conditions that apply to many functions within a contract. We have an access control statement already, in our destroy function. Let’s create a function modifier that expresses that condition:

This function modifier, named onlyOwner, sets a condition on any function that it modifies, requiring that the address stored as the owner of the contract is the same as the address of the transaction’s msg.sender. This is the basic design pattern for access control, allowing only the owner of a contract to execute any function that has the onlyOwner modifier.

You may have noticed that our function modifier has a peculiar syntactic "placeholder" in it, an underscore followed by a semicolon (_;). This placeholder is replaced by the code of the function that is being modified. Essentially, the modifier is "wrapped around" the modified function, placing its code in the location identified by the underscore character.

To apply a modifier, you add its name to the function declaration. More than one modifier can be applied to a function; they are applied in the sequence they are declared, as a space-separated list.

Let’s rewrite our destroy function to use the onlyOwner modifier:

The function modifier’s name (onlyOwner) is after the keyword public and tells us that the destroy function is modified by the onlyOwner modifier. Essentially, you can read this as "Only the owner can destroy this contract." In practice, the resulting code is equivalent to "wrapping" the code from onlyOwner around destroy.

Function modifiers are an extremely useful tool because they allow us to write preconditions for functions and apply them consistently, making the code easier to read and, as a result, easier to audit for security. They are most often used for access control, but they are quite versatile and can be used for a variety of other purposes.

Inside a modifier, you can access all the values (variables and arguments) visible to the modified function. In this case, we can access the owner variable, which is declared within the contract. However, the inverse is not true: you cannot access any of the modifier’s variables inside the modified function.

Solidity’s contract object supports inheritance, which is a mechanism for extending a base contract with additional functionality. To use inheritance, specify a parent contract with the keyword is:

With this construct, the Child contract inherits all the methods, functionality, and variables of Parent. Solidity also supports multiple inheritance, which can be specified by comma-separated contract names after the keyword is:

Contract inheritance allows us to write our contracts in such a way as to achieve modularity, extensibility, and reuse. We start with contracts that are simple and implement the most generic capabilities, then extend them by inheriting those capabilities in more specialized contracts.

In our Faucet contract, we introduced the constructor and destructor, together with access control for an owner, assigned on construction. Those capabilities are quite generic: many contracts will have them. We can define them as generic contracts, then use inheritance to extend them to the Faucet contract.

We start by defining a base contract Owned, which has an owner variable, setting it in the contract’s constructor:

Next, we define a base contract Mortal, which inherits Owned:

As you can see, the Mortal contract can use the onlyOwner function modifier, defined in Owned. It indirectly also uses the owner address variable and the constructor defined in Owned. Inheritance makes each contract simpler and focused on its specific functionality, allowing us to manage the details in a modular way.

Now we can further extend the Owned contract, inheriting its capabilities in Faucet:

By inheriting Mortal, which in turn inherits Owned, the Faucet contract now has the constructor and destroy functions, and a defined owner. The functionality is the same as when those functions were within Faucet, but now we can reuse those functions in other contracts without writing them again. Code reuse and modularity make our code cleaner, easier to read, and easier to audit.

A contract call can terminate and return an error. Error handling in Solidity is handled by four functions: assert, require, revert, and throw (now deprecated).

When a contract terminates with an error, all the state changes (changes to variables, balances, etc.) are reverted, all the way up the chain of contract calls if more than one contract was called. This ensures that transactions are atomic, meaning they either complete successfully or have no effect on state and are reverted entirely.

The assert and require functions operate in the same way, evaluating a condition and stopping execution with an error if the condition is false. By convention, assert is used when the outcome is expected to be true, meaning that we use assert to test internal conditions. By comparison, require is used when testing inputs (such as function arguments or transaction fields), setting our expectations for those conditions.

We’ve used require in our function modifier onlyOwner, to test that the message sender is the owner of the contract:

The require function acts as a gate condition, preventing execution of the rest of the function and producing an error if it is not satisfied.

As of Solidity v0.6.0, require can also include a helpful text message that can be used to show the reason for the error. The error message is recorded in the transaction log. So, we can improve our code by adding an error message in our require function:

The revert and throw functions halt the execution of the contract and revert any state changes. The throw function is obsolete and will be removed in future versions of Solidity; you should use revert instead. The revert function can also take an error message as the only argument, which is recorded in the transaction log.

Certain conditions in a contract will generate errors regardless of whether we explicitly check for them. For example, in our Faucet contract, we don’t check whether there is enough ether to satisfy a withdrawal request. That’s because the transfer function will fail with an error and revert the transaction if there is insufficient balance to make the transfer:

However, it might be better to check explicitly and provide a clear error message on failure. We can do that by adding a require statement before the transfer:

Additional error-checking code like this will increase gas consumption slightly, but it offers better error reporting than if omitted. You will need to find the right balance between gas consumption and verbose error checking based on the expected use of your contract. In the case of a Faucet contract intended for a testnet, we’d probably err on the side of extra reporting even if it costs more gas. Perhaps for a mainnet contract we’d choose to be frugal with our gas usage instead.

When a transaction completes (successfully or not), it produces a transaction receipt, as we will see in The Ethereum Virtual Machine. The transaction receipt contains log entries that provide information about the actions that occurred during the execution of the transaction. Events are the Solidity high-level objects that are used to construct these logs.

Events are especially useful for light clients and DApp services, which can "watch" for specific events and report them to the user interface, or make a change in the state of the application to reflect an event in an underlying contract.

Event objects take arguments that are serialized and recorded in the transaction logs, in the blockchain. You can supply the keyword indexed before an argument, to make the value part of an indexed table (hash table) that can be searched or filtered by an application.

We have not added any events in our Faucet example so far, so let’s do that. We will add two events, one to log any withdrawals and one to log any deposits. We will call these events Withdrawal and Deposit, respectively. First, we define the events in the Faucet contract:

We’ve chosen to make the addresses indexed, to allow searching and filtering in any user interface built to access our Faucet.

Next, we use the emit keyword to incorporate the event data in the transaction logs:

The resulting Faucet.sol contract looks like Faucet8.sol: Revised Faucet contract, with events.

Calling other contracts from within your contract is a very useful but potentially dangerous operation. We’ll examine the various ways you can achieve this and evaluate the risks of each method. In short, the risks arise from the fact that you may not know much about a contract you are calling into or that is calling into your contract. When writing smart contracts, you must keep in mind that while you may mostly expect to be dealing with EOAs, there is nothing to stop arbitrarily complex and perhaps malign contracts from calling into and being called by your code.

Any loop through a dynamically sized array where a function performs operations on each element or searches for a particular element introduces the risk of using too much gas. Indeed, the contract may run out of gas before finding the desired result, or before acting on every element, thus wasting time and ether without giving any result at all.

Calling other contracts, especially when the gas cost of their functions is not known, introduces the risk of running out of gas. Avoid using libraries that are not well tested and broadly used. The less scrutiny a library has received from other programmers, the greater the risk of using it.

If you need to estimate the gas necessary to execute a certain method of a contract considering its arguments, you could use the following procedure:

gasEstimate will tell you the number of gas units needed for its execution. It is an estimate because of the Turing completeness of the EVM—it is relatively trivial to create a function that will take vastly different amounts of gas to execute different calls. Even production code can change execution paths in subtle ways, resulting in hugely different gas costs from one call to the next. However, most functions are sensible and estimateGas will give a good estimate most of the time.

To obtain the gas price from the network you can use:

And from there you can estimate the gas cost:

Let’s apply our gas estimation functions to estimating the gas cost of our Faucet example, using the code from the book’s repository.

Start Truffle in development mode and execute the JavaScript file in gas_estimates.js: Using the estimateGas function, gas_estimates.js.

Here’s how that looks in the Truffle development console:

It is recommended that you evaluate the gas cost of functions as part of your development workflow, to avoid any surprises when deploying contracts to the mainnet.

As we saw in the previous chapter, in Solidity you can write a function using modifiers. For example, the following function, changeOwner, will run the code in a modifier called onlyBy as part of its execution:

This modifier enforces a rule in relation to ownership. As you can see, this particular modifier acts as a mechanism to perform a pre-check on behalf of the changeOwner function:

But modifiers are not just there to perform checks, as shown here. In fact, as modifiers, they can significantly change a smart contract’s environment, in the context of the calling function. Put simply, modifiers are pervasive.

Let’s look at another Solidity-style example:

On the one hand, developers should always check any other code that their own code is calling. However, it is possible that in certain situations (like when time constraints or exhaustion result in lack of concentration) a developer may overlook a single line of code. This is even more likely if the developer has to jump around inside a large file while mentally keeping track of the function call hierarchy and committing the state of smart contract variables to memory.

Let’s look at the preceding example in a bit more depth. Imagine that a developer is writing a public function called a. The developer is new to this contract and is utilizing a modifier written by someone else. At a glance, it appears that the stageTimeConfirmation modifier is simply performing some checks regarding the age of the contract in relation to the calling function. What the developer may not realize is that the modifier is also calling another function, nextStage. In this simplistic demonstration scenario, simply calling the public function a results in the smart contract’s stage variable moving from SafeStage to DangerStage.

Vyper has done away with modifiers altogether. The recommendations from Vyper are as follows: if only performing assertions with modifiers, then simply use inline checks and asserts as part of the function; if modifying smart contract state and so forth, again make these changes explicitly part of the function. Doing this improves auditability and readability, as the reader doesn’t have to mentally (or manually) "wrap" the modifier code around the function to see what it does.

Inheritance allows programmers to harness the power of prewritten code by acquiring preexisting functionality, properties, and behaviors from existing software libraries. Inheritance is powerful and promotes the reuse of code. Solidity supports multiple inheritance as well as polymorphism, but while these are key features of object-oriented programming, Vyper does not support them. Vyper maintains that the implementation of inheritance requires coders and auditors to jump between multiple files in order to understand what the program is doing. Vyper also takes the view that multiple inheritance can make code too complicated to understand—a view tacitly admitted by the Solidity documentation, which gives an example of how multiple inheritance can be problematic.

Inline assembly gives developers low-level access to the Ethereum Virtual Machine, allowing Solidity programs to perform operations by directly accessing EVM instructions. For example, the following inline assembly code adds 3 to memory location 0x80:

Vyper considers the loss of readability to be too high a price to pay for the extra power, and thus does not support inline assembly.

Function overloading allows developers to write multiple functions of the same name. Which function is used on a given occasion depends on the types of the arguments supplied. Take the following two functions, for example:

The first function (named f) accepts an input argument of type uint; the second function (also named f) accepts two arguments, one of type uint and one of type bytes32. Having multiple function definitions with the same name taking different arguments can be confusing, so Vyper does not support function overloading.

There are two sorts of typecasting: implicit and explicit

Implicit typecasting is often performed at compile time. For example, if a type conversion is semantically sound and no information is likely to be lost, the compiler can perform an implicit conversion, such as converting a variable of type uint8 to uint16. The earliest versions of Vyper allowed implicit typecasting of variables, but recent versions do not.

Explicit typecasts can be inserted in Solidity. Unfortunately, they can lead to unexpected behavior. For example, casting a uint32 to the smaller type uint16 simply removes the higher-order bits, as demonstrated here:

Vyper instead has a convert function to perform explicit casts. The convert function (found on line 82 of convert.py):

Note the use of conversion_table (found on line 90 of the same file), which looks like this:

When a developer calls convert, it references conversion_table, which ensures that the appropriate conversion is performed. For example, if a developer passes an int128 to the convert function, the to_int128 function on line 26 of the same (convert.py) file will be executed. The to_int128 function is as follows:

As you can see, the conversion process ensures that no information can be lost; if it could be, an exception is raised. The conversion code prevents truncation as well as other anomalies that would ordinarily be allowed by implicit typecasting.

Choosing explicit over implicit typecasting means that the developer is responsible for performing all casts. While this approach does produce more verbose code, it also improves the safety and auditability of smart contracts.

Although there is no merit because of gaslimit, developers can write an endless loop processing in Solidity. Infinite loop makes it impossible to set an upper bound on gas limits, opening the door for gas limit attacks. Therefore, Vyper doesn’t permit you to write the processing and has the following three features:

Vyper handles preconditions, postconditions, and state changes explicitly. While this produces redundant code, it also allows for maximal readability and safety. When writing a smart contract in Vyper, a developer should observe the following three points:

Ideally, each of these points should be carefully considered and then thoroughly documented in the code. Doing so will improve the design of the code, ultimately making it more readable and auditable.

The DAO (Decentralized Autonomous Organization) attack was one of the major hacks that occurred in the early development of Ethereum. At the time, the contract held over $150 million. Reentrancy played a major role in the attack, which ultimately led to the hard fork that created Ethereum Classic (ETC). For a good analysis of the DAO exploit, see http://bit.ly/2EQaLCI. More information on Ethereum’s fork history, the DAO hack timeline, and the birth of ETC in a hard fork can be found in Ethereum Standards.

Proof of Weak Hands Coin (PoWHC), originally devised as a joke of sorts, was a Ponzi scheme written by an internet collective. Unfortunately it seems that the author(s) of the contract had not seen over/underflows before, and consequently 866 ether were liberated from its contract. Eric Banisadr gives a good overview of how the underflow occurred (which is not too dissimilar to the Ethernaut challenge described earlier) in his blog post on the event.

Another example comes from the implementation of a batchTransfer() function into a group of ERC20 token contracts. The implementation contained an overflow vulnerability; you can read about the details in PeckShield’s account.

A few examples of exploitable contracts were given in the Underhanded Solidity Coding Contest, which also provides extended examples of a number of the pitfalls raised in this section.

The Second Parity Multisig Wallet hack is an example of how well-written library code can be exploited if run outside its intended context. There are a number of good explanations of this hack, such as “Parity Multisig Hacked. Again” and “An In-Depth Look at the Parity Multisig Bug”.

To add to these references, let’s explore the contracts that were exploited. The library and wallet contracts can be found on GitHub.

The library contract is as follows:

And here’s the wallet contract:

Notice that the Wallet contract essentially passes all calls to the WalletLibrary contract via a delegate call. The constant _walletLibrary address in this code snippet acts as a placeholder for the actually deployed WalletLibrary contract (which was at 0x863DF6BFa4469f3ead0bE8f9F2AAE51c91A907b4).

The intended operation of these contracts was to have a simple low-cost deployable Wallet contract whose codebase and main functionality were in the WalletLibrary contract. Unfortunately, the WalletLibrary contract is itself a contract and maintains its own state. Can you see why this might be an issue?

It is possible to send calls to the WalletLibrary contract itself. Specifically, the WalletLibrary contract could be initialized and become owned. In fact, a user did this, calling the initWallet function on the WalletLibrary contract and becoming an owner of the library contract. The same user subsequently called the kill function. Because the user was an owner of the library contract, the modifier passed and the library contract self-destructed. As all Wallet contracts in existence refer to this library contract and contain no method to change this reference, all of their functionality, including the ability to withdraw ether, was lost along with the WalletLibrary contract. As a result, all ether in all Parity multisig wallets of this type instantly became lost or permanently unrecoverable.

In the first Parity multisig hack, about $31M worth of Ether was stolen, mostly from three wallets. A good recap of exactly how this was done is given by Haseeb Qureshi.

Essentially, the multisig wallet is constructed from a base Wallet contract, which calls a library contract containing the core functionality (as described in Real-World Example: Parity Multisig Wallet (Second Hack)). The library contract contains the code to initialize the wallet, as can be seen from the following snippet:

Note that neither of the functions specifies their visibility, so both default to public. The initWallet function is called in the wallet’s constructor, and sets the owners for the multisig wallet as can be seen in the initMultiowned function. Because these functions were accidentally left public, an attacker was able to call these functions on deployed contracts, resetting the ownership to the attacker’s address. Being the owner, the attacker then drained the wallets of all their ether.

In February 2018 Arseny Reutov blogged about his analysis of 3,649 live smart contracts that were using some sort of pseudorandom number generator (PRNG); he found 43 contracts that could be exploited.
